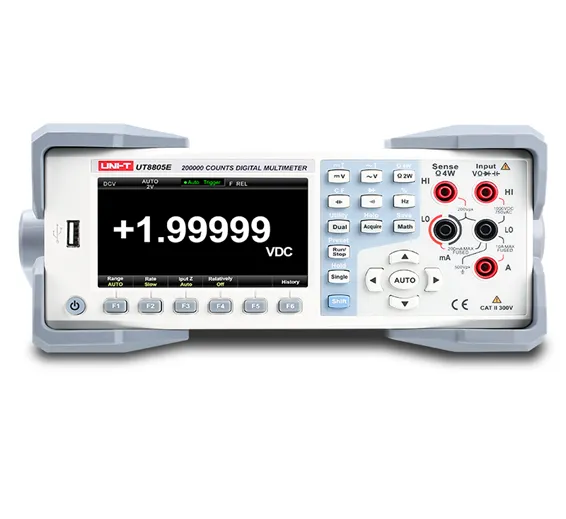

UNI-T UT8805E Benchtop Digital Multimeter
- Installation: Desktop
- Display Mode: Digital
- Accuracy: ±0.025%
- Theory: Electric Apparatus
- Power Source: AC
- Connection Type: USB,RS232
SKU: TCBOX65
Ask Price
Features of UNI-T UT8805E Benchtop Digital Multimeter:
- True 5½-digit reading resolution
- Up to 5k rdgs/s sampling rate
- Multiple mathematical operations
- True-RMS,AC voltage range:750V,AC current range:10A
- Built-in thermocouple cold junction compensation
- Arbitrary sensor measurement
- 1Gb flash memory storage which can support up to 10k data recall
- With 4.3 inches TFT LCD. Pass/Fail
- Support USB, GPIB, RS-232C and LAN interface; support USB-TMC, IEEE 488.2 standard, VXI11 and SCPI language
Technical Specifications of UNI-T UT8805E Benchtop Digital Multimeter:
| Model | UT8805E | |
| Specifications | Range | Accuracy (90 days) |
| DC voltage (V) | 20mV/2V/20V/200V/1000V | ±(0.008%+0.003%) |
| AC voltage (V) | 200mV/2V/20V/200V/750V | ±(0.19%+0.05%) |
| DC current (A) | 200μA/2mA/20mA/200mA/2A/10A | ±(0.050%+0.005%) |
| AC current (A) | 2mA/20mA/200mA/2A/10A | ±(0.30%+0.1%) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/10MΩ/100MΩ | ±(0.012%+0.003%) |
| Capacitance (F) | 2nF/20nF/200nF/2μF/20μF/200μF/2mF | ±(1%+0.5%) |
| Frequency (Hz) | 20Hz~1MHz | ±(0.01%+0.003%) |
| Temperature | -270°C~1760°C (thermocouple and thermal resistance sensor supported) | ±0.5°C |
| special function | ||
| Display count | 199999 | |
| Auto range | √ | |
| True RMS | √ | |
| Sampling speed | 5k rdgs/s | |
| Data storage | 10k data record; 1GB Nand Flash total storage | |
| Frequency response (Hz) | 100kHz | |
| Diode/triode | √ | |
| Continuity buzzer | √ | |
| Data hold | √ | |
| Mathematical operations | Pass/Fail, relative value, minimum/maximum/average, standard deviation, dBm, dB, Hold, histogram, trend chart and bar chart | |
| Voltage & current | AC+DC | |
| Input resistance | ≥10GB or 10MΩ | |
| Interface | USB Host, USB Device, LAN, RS-232 | |
| General Characteristics | ||
| Power | AC 100V~120V: 45Hz~440Hz; AC 200V~240V: 45Hz~66Hz | |
| Display | 4.3 inches TFT LCD | |
| Product color | White and grey | |
| Product net weight | 4.4kg | |
| Product size | 239mm×100mm×344mm | |
| Standard individual packing | Carton box | |
| Standard quantity per carton | 2pcs | |
| Standard carton measurement | 380mm x 330mm x 320mm | |
| Standard carton gross weight | 9kg | |
| Ordering Information | ||
| UT8000E Series | Benchtop Digital Multimeter (199999,Auto) | UT8805E |
| Standard Accessories | International standard power cord | / |
| USB interface cable | / | |
| Test leads | / | |
| double female straight-through serial cable | DB9 | |
| Product Warranty Card | / | |
| backup fuse | / | |
| User manual and Software appliation CD | / | |
