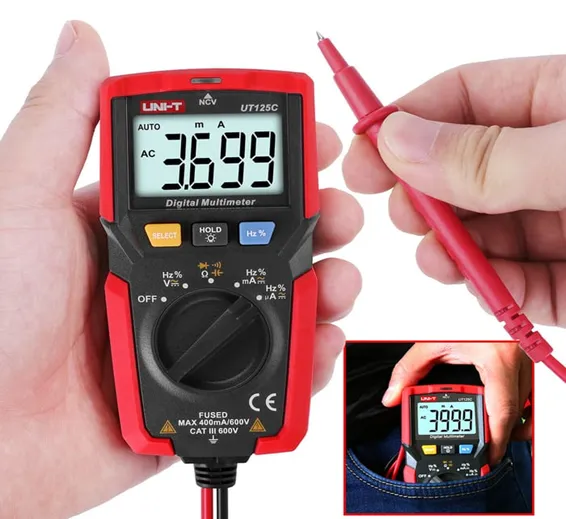

UNI T UT125C Digital Multimeter

UNI T UT125C Digital Multimeter

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only


Ask Price

UNI T UT125C digital multimeter is a powerful, dependable tool that safely measures various parameters. This UT-125C voltmeter designed to safely and accurately troubleshoot a variety of automotive and household electrical problems. UT 12 C tester can be used to measure voltage, DC current, resistance, continuity, and diode test, continuity test. This mini LCD digital multimeter adopts with a large LCD display provides accurate, easy-to-read results, and the maximum reading can up to 4000, and support data retention function. This handheld meter With large overview backlight LCD display can show data clearly, can make display easy to read in the dark condition. So this volt-ohm meter can enable you to complete your work quickly and efficiently. Equipped with universal multimeter plug, easy to use.

Features Of Pocket Digital Multimeter UNI-T UT125C:

  • Small size, easy to carry and operate.
  • 600V DC/AC voltage measurement.
  • 400mA DC/AC current measurement.
  • Resistance/Capacitance/Diode/Continuity test.
  • Frequency/Duty cycle measurement.
  • CE (EMC, LVD, RoHS), cETLus.
  • CAT III 600V.
  • 1m drop test.

Specification Of

  1. Brand: UNI-T
  2. Model Number: UT125C
  3. Material: ABS
  4. Display Type: Digital display
  5. Max. Display Count: 4000
  6. Operating Mode: Auto range
  7. Operating Temperature: 0~50℃
  8. Storage Temperature: -10~50℃
  9. Storage Humidity: ≤75%RH(0~30℃), ≤50%RH(30~40℃)
  10. Operating Altitude: 0~2,000m
  11. Falling Tester: 2m
  12. Safety Level: CAT III 600V
  13. DC Voltage Range: 400mV / 4V / 40V / 400V / 600V
  14. AC Voltage Range: 4V / 40V / 400V / 600V
  15. DC Current Range: 400μA / 4mA / 40mA / 400mA
  16. AC Current Range: 400μA / 4mA / 40mA / 400mA
  17. Resistance Range: 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ
  18. Capacitance Range: 50nF / 500nF / 5uF / 50uF / 100uF
  19. Power Supply: 2 * 1.5V AAA battery (NOT included)
  20. Screen Size: 38*23mm / 1.5*0.9in
  21. Test Probe Cable Length: 86mm / 3.4in
  22. Weight: 211g / 7.4oz (approx.)

UNI-T UT125C User Manual.

Package includes:

  • 1 x UNI-T UT125C Digital Multimeter
  • 2 x Test Lead
  • 1 x English Manual
