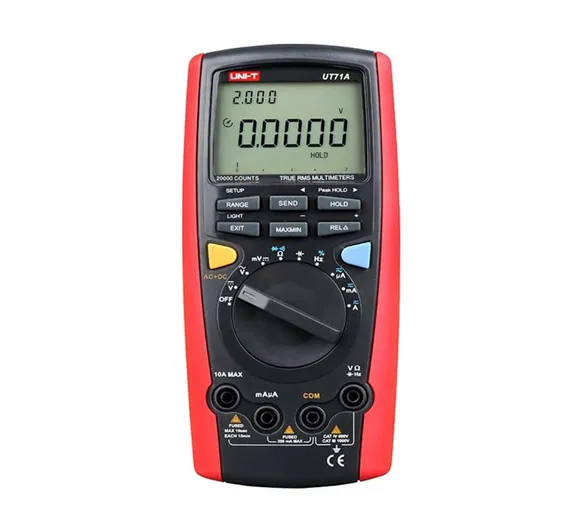

UNI-T UT71A digital multimeter is a high-quality multifunction pocket digital multimeter. This convenient portable multimeter is powered from a 9 V battery. UNI-T UT71A multimeter is characterized by multiple measurements (voltage, current, resistance, capacitance, frequency) and tests (diode, continuity) and data hold function, peak hold function, auto-ranging, relative measurements mode, analogue bar graph, etc. This smart meter has auto and manual ranging, hold function, low battery indicator and MIN/MAX/REL function features.
Features Of UNI-T UT71A Intelligent LCD Digital Multimeter With USB Interface:
- Compact and lightweight pocket-size device.
- LCD display with double backlight.
- Auto-ranging.
- Data hold function.
- Peak hold function.
- Relative measurements mode (REL).
- Max/Min mode.
- True RMS.
- Analog bar graph.
- Multiple measurements:
-
- AC voltage.
- DC voltage.
- AC current.
- DC current.
- Resistance.
- Capacitance.
- Frequency.
- Diode testing.
- Continuity test.
- Fused 10 A range.
- Sleep mode.
- Continuity buzzer.
- Battery power.
- Low battery display.
- Interface: USB.
- Easy to connect and operate.
- Electrical safety: EN61010-1, CATII600V/CATI1000V.
Specifications Of UT71A Middle Size Intelligent Digital Multimeter:
- Manufacturer: UNI-T
- Type of meter: Digital multimeter
- Measurement: AC current, AC voltage, capacitance, DC current, DC voltage, frequency, resistance
- Kind of display used: LCD (20000)
- Bargraph: 40 segm. 10x/s
- DC voltage measuring range: 200m/2/20/200/1000V
- DC voltage measuring accuracy: ±(0,1% + 8 digits)
- AC voltage measuring range: 2/20/200/1000V
- AC voltage measuring accuracy: ±(0.8% + 40 digits)
- DC current measuring range: 200µ/2000µ/20m/200m/10A
- DC current measuring accuracy: ±(0,2% + 20 digits)
- AC current measuring range: 200µ/2000µ/20m/200m/10A
- AC current measuring accuracy: ±(2% + 20 digits)
- True effective value measurement: True RMS
- Resistance measuring range: 200/2k/20k/200k/2M/20MΩ
- Resistance measuring accuracy: ±(1% + 20 digits)
- Capacitance measuring range: 20n/200n/2µ/20µ/200µ/2m/20mF
- Capacitance measuring accuracy: ±(1,5% + 40 digits)
- Frequency measuring range: 20/200/2k/20k/200k/2M/20M/200MHz
- Frequency measuring accuracy: ±(0,1% + 15 digits)
- Diode test: 2,8V
- Continuity test: acoustic signal for R<40Ω
- Overall dimensions (W x D x H): 177x85x40mm
- Weight with battery: 340g
- Power supply: 1 battery 9V 6F22
- Interface: USB
- Kind of output connector: USB A plug
- Protection: Anti-overload
Package includes:
- 1 x UNI-T UT71A digital multimeter unit
- 2 x Test leads
- 1 x Battery
- 1 x USB interface cable
- 1 x CD with Installation Guide & Computer Software
- 1 x User manual
- 1 x Carrying bag
