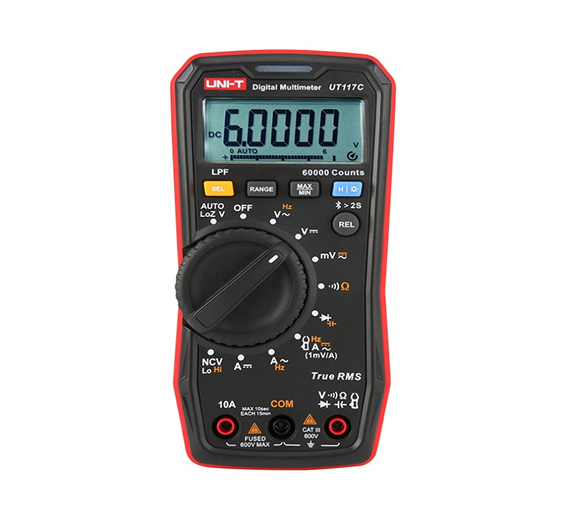

UNI-T UT117C High-precision True RMS Digital Multimeter
Multimeters

UNI-T UT117C High-precision True RMS Digital Multimeter

Condition: New
Brand: UNI-T
Availability: In Stock
Share:

UT117C is a high-precision true RMS multimeter, which has AC/DC 600V voltage measurement, 10A AC/DC current measurement, LPF measurement, Bluetooth function, etc.

The main features are fast response, high precision, small size, and easy operation, and product accuracy can still be guaranteed after a 2-meter drop. It is a good tool for electronic electricians.

SKU: TCBOX5

Rs.34000 Rs. 42500

Features of UT117C High-precision True RMS Digital Multimeter

  • High-precision: 60000 counts
  • True RMS measurement
  • AC/DC current: 10A
  • AC/DC voltage: 600V
  • LoZ, LPF & Auto Volt function
  • Audible & Visual Warning
  • Bluetooth app supported
  • External current clamp supported
  • Compact design, easy & convenient operation
  • Drop test: 2m
  • Magnetic hanger supported (optional)
  • Overvoltage category: CAT III 600 V
  • Certificates: CE, UKCA, cETLus

Specifications of UT117C High-precision True RMS Digital Multimeter

Model UT117C
AC voltage 600.00mV/6.0000V/60.000V/600.00V ±(1%+30)
AC current 6.0000A/10.000A ±(1.5%+30)
DC voltage 600.00mV/6.0000V/60.000V/600.00V ±(0.3%+10)
DC current 6.0000A/10.000A ±(0.5%+10)
Auto-V loz 600.0V ±(1%+3)
LPF voltage (ACV) 600.0V ±(2%+3)
Frequency 99.99Hz/999.9Hz/9.999KHz/50.00KHz ±(0.01%+3)
Resistance 600.00Ω~6.0000MΩ ±(0.5%+5)
40.000MΩ ±(3%+5)
Capacitance 1000nF/10.00uF/100.0uF ±(1.9%+5)
1000uF/10000uF ±(2.5%+5)
Main Features
Display count   60000
External current clamp Ratio: 1mV/A
Continuity & Diode
NCV
Data Hold
Manual/Auto range
Max/Min
Relative mode
High voltage warning
Audiable & Visuable indication
Low battery indication
Auto Power Off Around 15 minutes
LCD backlight Auto power off after 5 minutes
Bluetooth
Drop Test 2m
Overvoltage category   CATIII 600V
General Characteristics
Power supply 1.5V AAA * 3
Product Color Red + Grey
Product Weight Around 346g
Product Dimension 169x 84x 48.8mm
Accessories Test probe*1 pair, Battery, Magnetic strap*1 pcs, User manual*1 pcs
Package quantity 10 pcs / package
Package Size TBD
Gross Weight TBD
