UNI T Modern Digital Multimeter UT61C
Multimeters

UNI T Modern Digital Multimeter UT61C

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

SKU: TMD1,Th6,KRT

Ask Price

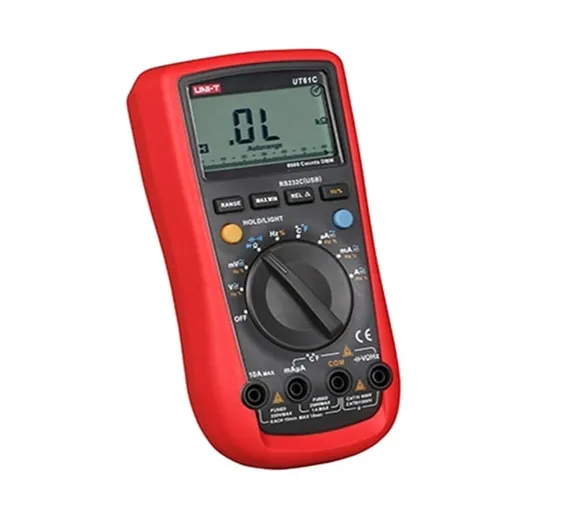

UNI-T UT61C digital multimeter is a high-quality multifunction pocket multimeter. This convenient best digital multimeter is powered from a 9 V battery. UNI-T UT-61C unity multimeter is characterized by multiple measurements (voltage, current, resistance, capacitance, frequency, temperature) and tests (diode, continuity) and auto power-off function, analogue bar graph, data hold function. This multimeter tester is an auto range meter with 6000 display count, featuring 61 segment analogue bar display and 1kHz bandwidth.

Features Of Best Multimeter For Electricians UT-61C:

  • Auto range
  • MAX/MIN/REL mode
  • Auto power off
  • LCD backlight
  • RS-232 and USB interface
  • Analog bar graph
  • Low battery indication
  • K-type temperature probe
  • Diode/continuity buzzer
  • Data hold
  • Input protection

Specifications Of UNI-T Multimeter UT61C:

  1. Model: UT61C
  2. DC Voltage (V): 60mV/600mV/6V/60V/600V/1000V ±(0.5%+1)
  3. AC Voltage (V): 60mV/600mV/6V/60V/600V/750V ±(1.0%+3)
  4. DC Current (A): 600μA/6000μA/60mA/600mA/6A/10A ±(1.0%+3)
  5. AC Current (A): 600μA/6000μA/60mA/600mA/6A/10A ±(1.2%+5)
  6. Resistance (Ω): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+2)
  7. Capacitance (F): 40nF/400nF/4μF/40μF/400μF/4000μF ±(3.0%+5)
  8. Frequency (Hz): 10Hz-10MHz ±(0.1%+4)
  9. Temperature (°C): -40°C~1000°C ±(1.2%+3)
  10. Temperature (°F): -40°F~1832°F ±(1.2%+4)
  11. Display Count: 6000
  12. Auto Range: Yes
  13. Bandwidth (Hz): 45Hz~1kHz
  14. Duty Cycle: 0.1% ~ 99.9%
  15. Diode: Yes
  16. Auto Power Off: Around 15 minutes
  17. Continuity Buzzer: Yes
  18. Low Battery Indication: ≤7.5V
  19. Data Hold: Yes
  20. Relative Mode: Yes
  21. MAX/MIN: Yes
  22. RS-232: Yes
  23. LCD Backlight: Yes
  24. Analog Bar Graph: 61
  25. Input Protection: Yes
  26. Input Impedance for DCV: Around 10MΩ
  27. Power: 9V Battery (6F22)
  28. LCD Size: 65mm X 43mm
  29. Product Color: Red and grey
  30. Product Net Weight: 370g
  31. Product Size:180mm X 87mm X 47mm

Package includes:

  • 1 x UNI-T UT61C Digital Multimeter Unit
  • 2 x Test leads
  • 1 x
  • K-type temperature probe
  • 1 x Multi-purpose socket
  • 1 x Battery(Installed)
  • 1 x USB Cable
  • 1 x CD with Installation Guide & Computer Software
  • 1 x User manual

Best Online Shopping website for UNI-T Handheld Pocket Size Digital Multimeter UT61C Best Budget Avo Meter DC AC Voltage Current Resistance Meter Tester Voltmeter Ammeter Ohmmeter Tester UT-61C in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
