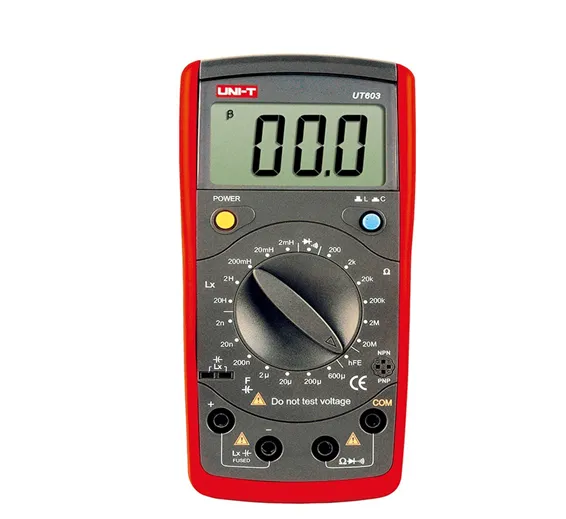

UT603 Inductance Capacitance Meter
- UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters.
- It can be used to check electronic components in electronic labs, production lines, maintenance facilities and schools.
SKU: TCBOX76
Ask Price
UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters. These meters can be used to check electronic components in electronic labs, production lines, maintenance facilities and schools.
Technical Specifications of UT603 Inductance Capacitance Meter:
| Specifications | Range | UT603 |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+1) |
| Capacitance (F) | 2nF/20nF/200nF/2uF/20uF/200uF/600uF | ±(1%+5) |
| Inductance (H) | 2mH/20mH/200mH/2H/20H | ±(2%+8) |
| Features | ||
| Display count | 2000 | |
| Manual range | √ | |
| Diode | √ | |
| Transistor | √ | |
| Continuity buzzer | √ | |
| Low battery indication | √ | |
| General Characterisitics | ||
| Power | 9V battery (6F22) | |
| Display | 61mm x 32 mm | |
| Product color | Red and grey | |
| Product net weight | UT601/UT602: 310g, UT603: 312g | |
| Product size | 172mm x 83mm x 38mm | |
| Standard accessories | Battery, test leads with alligator clips, holster | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 450mm x 330mm x 340mm (0.099CBM per standard carton) | |
| Standard carton gross weight | 9.6kg | |
