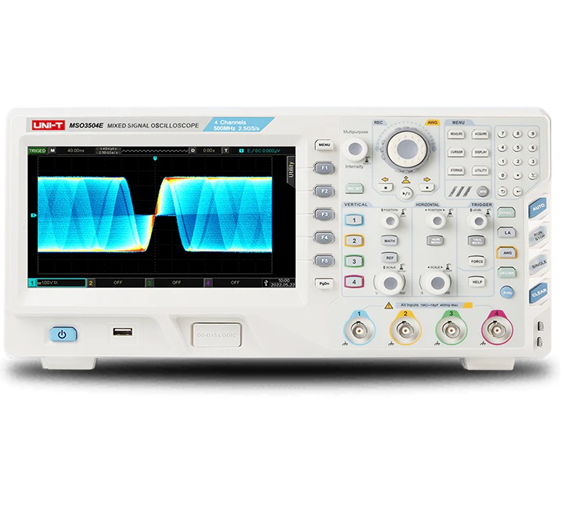

MSO3504E Digital Oscilloscope 500MHz 4 Channels in Pakistan
- Bandwidth: 500MHz
- Channels: 4 Analog + 16 Digital
- REAL-TIME SAMPLE RATE : 2.5GSa/s
- Rise time: ≤750ps
- Memory depth: 250Mpts
- Waveform capture rate: 1.000,000wfms/s
SKU: TCBOX87
Rs.741000
Rs. 926250
MSO3504E Digital Oscilloscope Specifications
| Feature | Specification |
|---|---|
| Model Number | MSO3504E |
| Bandwidth | 500MHz |
| Channels | 4 Analog + 16 Digital |
| Real-Time Sample Rate | 2.5GSa/s |
| Rise Time | ≤750ps |
| Memory Depth | 250Mpts |
| Waveform capture rate | 1,000,000wfms/s |
| Input impedance(analog channel) | （1MΩ± 2%）||（18 pF± 3 pF） |
| Input impedance(Digital Channel) | （101 kΩ±1%）||（9 pF ± 1 pF） |
| Waveform Generator | No |
| Display | 8-inch 800x480 capacitive touch display |
| Warranty | 3 years |
| Shipping Dimensions (L x W x H) | 370mm×185mm×115mm |
| Shipping Weight | 4.5 kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable, Passive probe 500MHz * 2(UT-P07) or 350MHz * 4 (UT-P08), Logic analyzer probe (UT-M15) |
Applications
| Model | UPO3504E | UPO3502E | UPO3354E | UPO3352E |
| Bandwidth | 100MHz | 350MHz | ||
| Channels | Analog 4 | Analog 2 | Analog 4 | Analog 2 |
| Real Time Sample | 2.5GSa/s | |||
| Max. Memory Depth | 250Mpts | |||
| Waveform Capture Rate | 1.000,000wfms/s | |||
| Waveform Generator | No | |||
| Model | MSO3352E | MSO3354E | MSO3502E | MSO3504E |
| Bandwidth | 350MHz | 500MHz | ||
| Channels | Analog 2 | Analog 4 | Analog 2 | Analog 4 |
| Real Time Sample | 2.5GSa/s | |||
| Max. Memory Depth | 250Mpts | |||
| Waveform Capture Rate | 1.000,000wfms/s | |||
| Waveform Generator | No | |||
| Model | MSO3354E-S | MSO3504E-S |
| Bandwidth | 350MHz | 500MHz |
| Channels | Analog 4 +Digital 16 | |
| Real Time Sample | 2.5GSa/s | |
| Max. Memory Depth | 250Mpts | |
| Waveform Capture Rate | 1.000,000wfms/s | |
| Waveform Generatore | Yes | |
