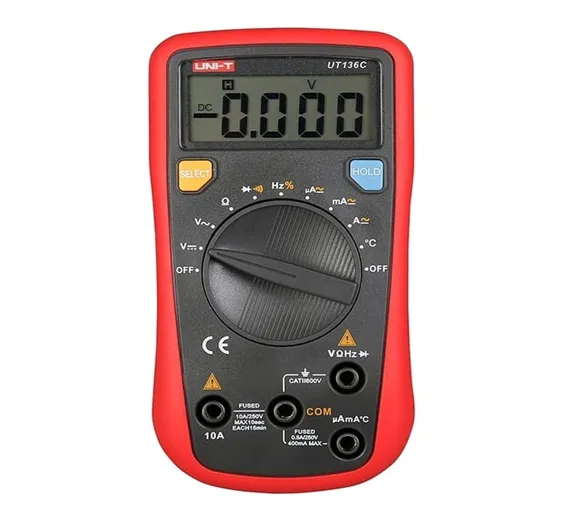

UNI T UT136C Handheld Auto Ranging Digital Multimeter

UNI T UT136C Handheld Auto Ranging Digital Multimeter

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only


Ask Price

UNI-T UT136C is mini handheld auto-ranging digital multimeter. UT-136C handheld LCD digital multimeter that offers users complete functions, stable performance, low power consumption, novel structural design, a high degree of safety and reliability. This UNI-T auto range multimeter, therefore, becomes an ideal portable tool for maintenance and repair. The applications of this low price digital multimeter are homes, schools, metallurgy, communications, manufacturing, national defence, electric power, chemical industry, etc, and the series is the best choice for electric circuit/equipment maintenance and repair.

Features Of UNI-T UT136C Pocket-size AC/DC Digital Multimeter with Temperature Measurement:

  • Pocket size digital multimeter with temperature measurement up to 1,000 degrees (celsius only)
  • AC/DC Voltage/Current, Resistance, Frequency, Diode Check, Continuity, Transistor test & Temperature
  • Stable performance, low power consumption, a high degree of safety and reliability, and therefore has become an ideal portable tool for maintenance and repair.
  • Flip-back table stand
  • Data hold

Specifications Of Handheld Digital Multimeter UNI-T UT-136C:

  1. Measurement: AC current, AC voltage, continuity, DC current, DC voltage, resistance, temperature
  2. Kind of display used: LCD (2000), with a backlit
  3. DC voltage measuring range: 400m/4/40/400/500V
  4. DC voltage measuring accuracy: ±(0,8% + 3 digits)
  5. AC voltage measuring range: 400m/4/40/400/500V
  6. AC voltage measuring accuracy: ±(1,2% + 5 digits)
  7. DC current measuring range: 400µ/4000µ/40m/400m/4/10A
  8. DC current measuring accuracy: ±(1% + 2 digits)
  9. AC current measuring range: 400µ/4000µ/40m/400m/4/10A
  10. AC current measuring accuracy: ±(1,5% + 5 digits)
  11. Resistance measuring range: 400/4k/40k/400k/4M/40MΩ
  12. Resistance measuring accuracy: ±(1,2% + 3 digits)
  13. Temperature measuring range: -40...1000°C
  14. Diode test: yes
  15. Continuity test: acoustic signal for R<10Ω
  16. Dimensions: 72x137x35mm
  17. Weight: 200g
  18. Power supply: 1 battery 9V 6F22
  19. Standard equipment: test leads
  20. Conform to the norm: EN61010 250V CAT II

Package includes:

  • 1 x Handheld Auto-ranging Digital Multimeter
  • 2 x Test leads
  • 1 x K-type probe
  • 1 x User manual
  • 1 x 9V Battery (installed)

Best Online Shopping website for UNI-T Pocket Size Digital Multimeter UT136C Avo Meter DC AC Voltage Current Resistance Meter Tester Voltmeter Ammeter Ohmmeter Tester UT-136C in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
