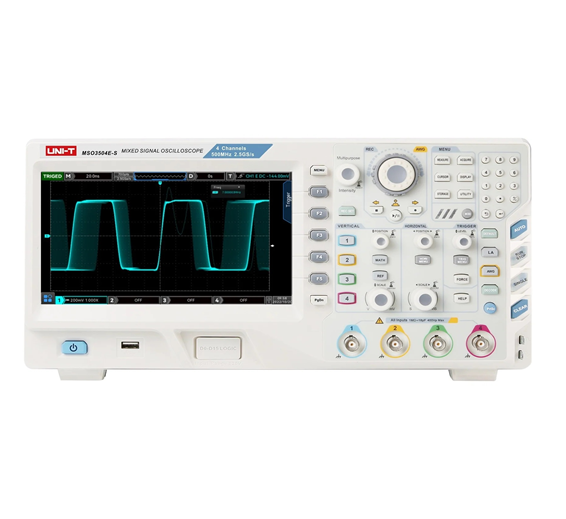

UNI-T MSO3504E-S 500MHz 4+16Ch MSO Digital Oscilloscope with Signal Generator 4+16 Channels
- Bandwidth: 500MHz
- Channels: 4 Analog + 16 Digital
- REAL-TIME SAMPLE RATE : 2.5GSa/s
- Rise time: ≤750ps
- Memory depth: 250Mpts
- Waveform capture rate: 1.000,000wfms/s
SKU: TCBOX88
MSO3504E-S
| Feature | Specification |
|---|---|
| Model Number | MSO3504E-S |
| Scope Type | MSO |
| Bandwidth | 500MHz |
| Channels | 4Ch |
| Scope Sample Rate | 2.5GSa/s |
| Memory Depth | 250Mpts |
| Refresh Rate | 200,000wfms/s |
| Vertical Scale @1MΩ | 1mV/div to 10V/div |
| # Automatic Measurements | 36 |
| Included Bus Protocols | None |
| Optional Bus Protocols | RS232 UART I2C SPI CAN CAN-FD LIN FlexRay |
| Logic Pod Included | Included |
| Signal Generator Function | Included |
| Frequency Meter | 7-bit |
| Display Size (in) | 8in |
| Touchscreen | Yes |
| Warranty | 3 years |
| Product Dimensions (L x W x H) | 15 in x 5 in x 7 in |
| Product Weight | 10 lb |
| Certifications | CE/cETLus/UKCA |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Oscilloscope probe (UT-P07A)*4, logic probe (UT-M15), BNC straight-through cable, BNC to alligator clip cable |
| Standard Accessories | Power cord, USB2.0 printing cable |
UNI-T MSO3504E-S Mixed Signal Oscilloscope Top Specifications:
- Bandwidth: 500MHz
- Analog Channels: 4
- Digital Channels: 16 (UT-M15 Logic probe included)
- Function Generator: 50MHz ARB Included
- Real-Time Sample Rate: 2.5GSa/s
- Max. Memory depth: 250Mpts
- Waveform Capture Rate: 200,000wfms/s
- Display: 8in Multi-point Capacitive Touchscreen
With its unrivaled combination of speed, versatility, and a built-in function generator, the UNI-T MSO3504E-S Mixed Signal Oscilloscope is your gateway to precision, efficiency, and unmatched performance. Here's why you can't afford to miss out:
Speed Beyond Compare:
Equipped with a blazing 500MHz bandwidth and a real-time sample rate of 2.5GSa/s, the UNI-T MSO3504E-S Mixed Signal Oscilloscope ensures you don't miss even the tiniest detail of your signals. It follows the "Rule of Five," guaranteeing accurate measurements for applications up to 100MHz and beyond.
Four Channels for Total Versatility:
Unleash the power of four analog input channels! Whether you're debugging complex circuits, analyzing serial protocols, or diving into video signal analysis, these channels are your secret weapon. You might not always need all four, but when you do, the UNI-T MSO3504E-S Mixed Signal Oscilloscope is ready to deliver.
Built-In Function Generator:
Hold the power to create and manipulate waveforms in your hands! The dual-channel function arbitrary waveform generator included in the UNI-T MSO3504E-S Mixed Signal Oscilloscope can produce sine waves, square waves, ramps, pulses, arbitrary waveforms, noise, and DC signals. Plus, it can generate sine waves up to a staggering 50MHz frequency.
Bode Plot Functionality:
Say hello to the essential tool for characterizing the frequency response of electronic designs! With Bode plot capability of the UNI-T MSO3504E-S Mixed Signal Oscilloscope, you can analyze gain, phase, and frequency responses for passive filters, amplifier circuits, and more. Achieve precision like never before.
Comprehensive Digital Capabilities:
With 16 digital channels and logic analysis probes, you're equipped for parallel bus analysis, protocol decoding, and precise timing measurements. The UNI-T MSO3504E-S Mixed Signal Oscilloscope allows you to harness the power of Rank Selection, Data Bus Setting, Group Setting, Event Lists, and more.
Multi-Function Instrument:
Beyond its oscilloscope prowess, the UNI-T MSO3504E-S Mixed Signal Oscilloscope doubles as a frequency counter and a digital voltmeter (DVM). It supports multi-channel independent AC/DC true RMS measurements, offering you comprehensive insights.
Ultimate Memory and Decoding Power:
Dive into deep storage with 250Mpts of memory depth per channel. With the UNI-T MSO3504E-S Mixed Signal Oscilloscope, you will experience lightning-fast decoding with full-memory hardware decoding, transforming problem diagnosis efficiency from seconds to milliseconds.
Intuitive Display:
The 8-inch touch screen, enhanced with gesture operations, makes measurement actions smooth and convenient on the UNI-T MSO3504E-S Mixed Signal Oscilloscope. Master the device quickly with traditional button and knob operation options, all optimized for your benefit.
Ultra-High Capture Rate:
Innovative digital signal parallel processing technology enables the UNI-T MSO3504E-S Mixed Signal Oscilloscope to have an astounding capture rate of 200,000wfms/s in normal sampling and a mind-boggling 1,000,000wfms/s in Fast Acquire mode. Capture occasional signals with unmatched efficiency.
XY Mode for Precision Measurements:
Utilizing the XY mode, the UNI-T MSO3504E-S Mixed Signal Oscilloscope provides a way so you can efficiently assess the phase disparities between two signals by utilizing cursor measurements on an XY plot. This mode proves invaluable when you need to analyze the relationship and alignment between two waveforms, making it particularly useful in various applications, such as signal synchronization, circuit debugging, and frequency domain analysis.
