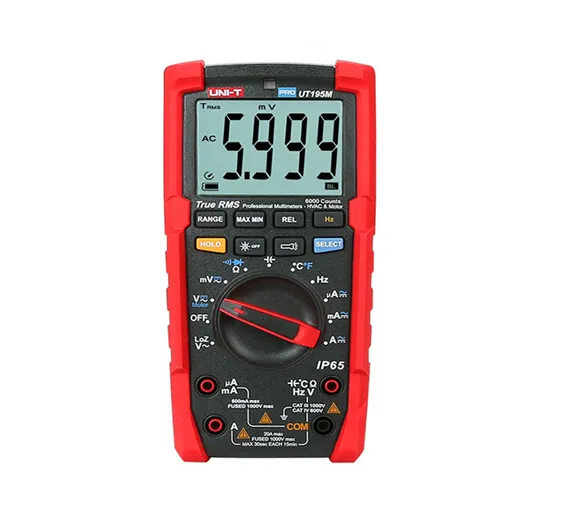

UNI T True RMS Digital Multimeter UT195M

UNI T True RMS Digital Multimeter UT195M

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only


Ask Price

UT195 series are handheld industrial digital multimeters with IP65 and 2m drop-proof. Compare with traditional multimeters, UT-195M electric multimeter troubleshooting capability, resolution and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. This UT 195 M best uni-t multimeter is exquisitely designed and easy to operate.

Features Of UT195M Professional Multimeter:

  • IP65 rating, 2m drop-proof, CAT III 1000V, CAT IV 600V
  • Large 6000-count LCD screen
  • True RMS
  • ACV 750V 5kHz bandwidth
  • Flashlight
  • Auto LCD backlight controlled by the light sensor (feature can be turned off)
  • LoZ voltage test, for ghost voltage measurement
  • Motor phase sequence measurement with 2 probes
  • 20A current measurement (max 30 seconds)

Specifications Of UT 195M Digital multimeter For Industrial Use:

  1. Manufacturer: UNI-T
  2. Type of meter: Digital multimeter
  3. Measurement: AC voltage, capacitance, DC current, DC voltage, frequency, resistance, temperature
  4. Kind of display used: LCD (6000), with a backlit
  5. DC voltage measuring range: 600m/6/60/600/1000V
  6. DC voltage measuring accuracy: ±(0,5% + 3 digits)
  7. AC voltage measuring range: 600m/6/60/600/750V
  8. AC voltage measuring accuracy: ±(0,7% + 3 digits)
  9. DC current measuring range: 600µ/6000µ/60m/600m/6/20A
  10. DC current measuring accuracy: ±(0,8% + 3 digits)
  11. AC current measuring range: 600µ/6000µ/60m/600m/6/20A
  12. AC current measuring accuracy: ±(1% + 3 digits)
  13. True effective value measurement:
  14. True RMS
  15. Resistance measuring range: 600/6k/60k/600k/6M/60MΩ
  16. Resistance measuring accuracy: ±(0,8% + 2 digits)
  17. Capacitance measuring range: 6n/60n/600µ/6m/60mF
  18. Capacitance measuring accuracy: ±(3% + 5 digits)
  19. Frequency measuring range: 600...40MHz
  20. Frequency measuring accuracy : ±(0,1% + 4 digits)
  21. Temperature measuring range: -40...1000°C
  22. Diode test: Yes
  23. Continuity test: Acoustic indication
  24. Operating temperature: 0...40°C
  25. IP rating: IP65
  26. Overall dimensions (W x D x H): 95x58x195mm
  27. Weight with battery: 473g
  28. Power supply: 1 battery 9V 6F22
  29. Conform to the norm: EN61010 1000V CAT III, EN61010 600V CAT IV
  30. Resistance to: fall from 2m height

Package Includes:

  • 1 x UT195M Professional Multimeter
  • 2 x Test probes
  • 1 x Drop-like K-type temperature probe
  • 1 x Battery
  • 1 x Case
