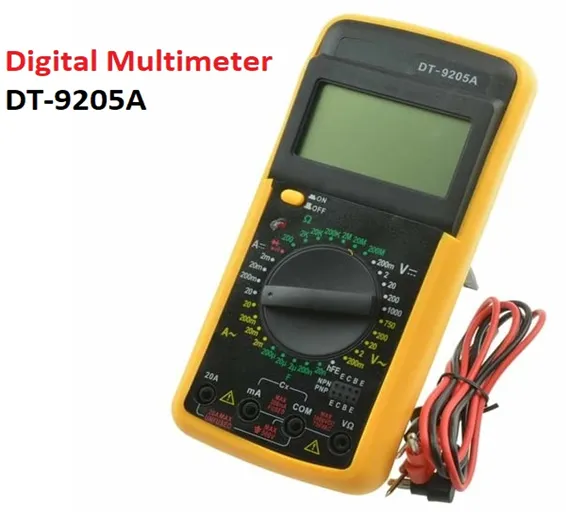

Digital Multimeter DT9205A
Multimeters

Digital Multimeter DT9205A

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: RAWLIXDig

Ask Price

The DT9205A multimeter offers you several amplitudes of measurement with which to test electrical components for voltage, resistance or continuity. You can measure several different magnitudes of these quantities by adjusting the dial on the surface of the multimeter. The two most common uses for a Handheld Digital Multimeter are to test voltage and resistance. pocket size professional Multitester is High Quality, Humanized design, with anti-fall protective cover, sturdy and durable performance. Portable Multimeter dt9205a is Very useful for debugging electrical problems including small power wires, car components, small electrical circuits, and more.

Features Of Handheld Pocket-size Digital Multimeter DT-9205A:

  • High Quality: Humanized design, with anti-fall protective cover, sturdy and durable performance.
  • Clear Display: Large-screen high-definition LCD display, 3-bit half-reading clear.
  • Precision Circuit: Automatic recovery overload protection, over range automatic protection.
  • Good Performance: Data retention, built-in anti-burning insurance, battery voltage insufficient prompt and other functions.
  • Measuring Function: It can test AC/DC voltage, AC/DC current, diode test, distinguish positive and negative poles of household voltage socket, circuit on-off, resistance measurement, triode test.
  • Automatic shut off after a while of no usage to save on batteries.

Specifications Of Portable Palm Size Digital Multitester DT9205A:

  1. Type: Digital Multimeter
  2. Model:DT9205A
  3. Color: Yellow
  4. DC Voltage Range: 200mV/20V/200V/1000V
  5. AC Voltage Range: 200mV/2V/20V/200V/750V
  6. DC Current Range: 20μA/200μA/2mA/20mA/200mA/10A
  7. AC Current Range: 20μA/200μA/2mA/20mA/200mA/10A
  8. Resistance Range: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ
  9. Capacitance Range: 2nF/20nF/200nF/2μF/20μF/100μF
  10. Battery :1*6F22 9V Battery(Not included)
  11. Size:19cmx9cmx3cm

Package Include:

  • 1x Digital Multimeter DT9205A

Best Online Shopping website for Modern Digital Multimeter DT9205A AC/DC Voltmeter Ammeter Resistance and capacitance MultiTester in cheap price in Karachi Lahore Islamabad Rawalpindi Sukkur Peshawar Multan Quetta Faisalabad and all over Pakistan
