True RMS Datalogging Multimeter UNI T UT181A
Multimeters

True RMS Datalogging Multimeter UNI T UT181A

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

SKU: TMD1,Th6,KRT

Ask Price

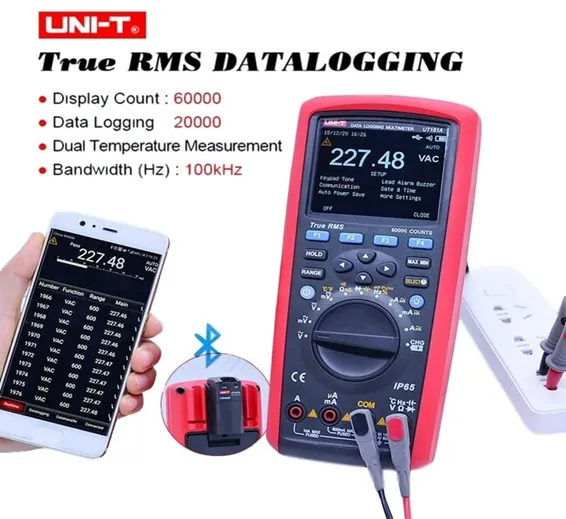

Portable Industrial Multimeter UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the Multitester with data logging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term Monitoring. True RMS digital multimeter is designed with a large LCD display for measuring AC/DC voltage & current, resistance, frequency, capacitance, temperature and performing hFE, diode, continuity tests and Bluetooth communication. UNI-T Pocket SizeDigital Multimeter UT191A is ergonomic design, comfortable and solid. UT181A Handheld Data Logging Multimeter is an accurate multimeter for engineers

Features Of UNI T True RMS Multimeter with Data logging UT181A:

  • Trend capture
  • Data logging: 20000
  • Data comparison
  • 3.5-inch 64k color TFT LCD
  • Dual temperature measurement
  • Low pass filter
  • Real-time and date
  • Peak hold
  • Bluetooth/APP
  • USB interface cable /PC software CD
  • IP65

Specifications Of Smart Digital Multitester UT181A with Bluetooth Communication:

  1. Power: Li-ion battery: 7.4V 2200mAh
  2. Display: 3.5-inch 64K color TFT LCD (320 x 240)
  3. Dimension: 225mm x 103mm x 59mm
  4. DC voltage (V):
    • Accuracy: ±(0.025%+5)
    • Range: 1000V
    • AC voltage (V):
      • Accuracy: ±(0.3%+30)
      • Range: 1000V
      • DC current (A):
        • Range: 10A
        • Accuracy: ±(0.08%+10)
      • AC current (A):
        • Range:10A
        • Accuracy: ±(0.6%+20)
      • Resistance (Ω):
        • Range:60MΩ
        • Accuracy: ±(0.05%+2)
      • Admittance (nS):
        • Range: 60nS
        • Accuracy: ±(2%+10)
      • Capacitance (F):
        • Range: 60mF
        • Accuracy: ±(2%+5)
      • Frequency (Hz):
        • Range: 10Hz~60MHz
        • Accuracy: ±(0.01%+5)
      • Temperature (°C):
        • Range: -40°C~1000°C
        • Accuracy: ±(1%+30)
      • Temperature (°F):
        • Range: -40°F~1832°F
        • Accuracy: ±(1.5%+50)

Package Include:

  • 1x True RMS Datalogging Multimeter UNI T UT181A
