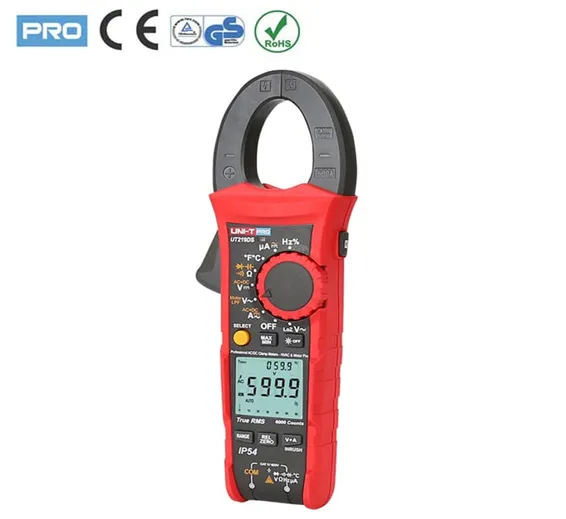

UNI T UT219DS True RMS Professional Digital Clamp Meter
Clamp Meters

UNI T UT219DS True RMS Professional Digital Clamp Meter

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only


Ask Price

UT219 series is 600A true RMS professional clamp meter with a CAT IV 600V rating from UNI-T. Handheld Digital Clamp Tester UT219DS is industrially designed with an IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians. .UT219Ds True RMS Tong tester is used to measure AC/DC Current, Voltage, Resistance, Capacitance, Temperature, and Frequency.UT219DS Portable Clamp Multimeter is used to do a 3-phase motor sequence test and a low pass filter test.UNI-T Digital Ampere Meter has a large 6000 count display. Auto Range Clam meter has a flame sensor which is used to measure Temperature and μA measurements.

Features Of Multi Range AC/DC Current Clamp Ampere Meter 600A UT219DS:

  • LoZ input for ghost voltage measurement
  • 5 times/s measurement sampling rate
  • IP54 IP rating
  • 2m Drop Test
  • 20 times/s Analogbar sampling rate
  • Flashlight and auto backlight
  • 3-phase motor sequence test
  • Temperature and μA measurements (flame sensor)
  • Inrush current
  • AC+DC voltage
  • V+A dual display

Specifications Of UNI-T UT219DS Ideal Electrical Earth leakage Current Tong Tester:

  1. Power: 1.5V battery (R03) x 3
  2. LCD Display: 35mm x 31mm
  3. Dimension: 234.6mm x 82mm x 47mm
  4. Color: Red and Grey
  5. Jaw Capacity: 33mm
  6. Duty cycle: 0.1%~99.9%
  7. DC voltage:
    • Range:6V/60V/600V
    • Accuracy: ±(0.6%+3)
  8. LoZ ACV :
    • Range: 600 ±(2.5%+6)
    • Accuracy: ±(2.5%+6)
  9. AC voltage:
    • Range: 6V/60V/600V
    • Accuracy: ±(1%+6)
  10. AC current:
    • Accuracy: ±(1.8%+6)
    • Range: 600A
  11. DC current:
    • Accuracy: ±(1.8%+6)
    • Range: 600A
  12. Resistance:
    • Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
    • Accuracy: ±(1%+3)
  13. Capacitance:
    • Range: 60nF/600nF/6uF/60uF/600uF/6000uF/60mF
    • Accuracy: ±(4.0%+7)
  14. Frequency:
    • Range: 600Hz~40MHz
    • Accuracy: ±(0.1%+5)
  15. Temperature(°C):
    • Range: -40°C ~ 1000°C
    • Accuracy: ±(2%+5℃)
  16. Temperature(°F):
    • Range: -40°F ~ 1832°F
    • Accuracy: ±(2%+9℉)

Package includes:

  • 1x Clamp Meter UNI T UT219M

Best Online Shopping website for Modern Digital portable True RMS DCA ACA Clamp meter 600A UT219DS AC Voltmeter Ammeter and Resistance MultiTester in cheap price in Karachi Lahore Islamabad Rawalpindi Sukkur Peshawar Multan Quetta Faisalabad and all over Pakistan
