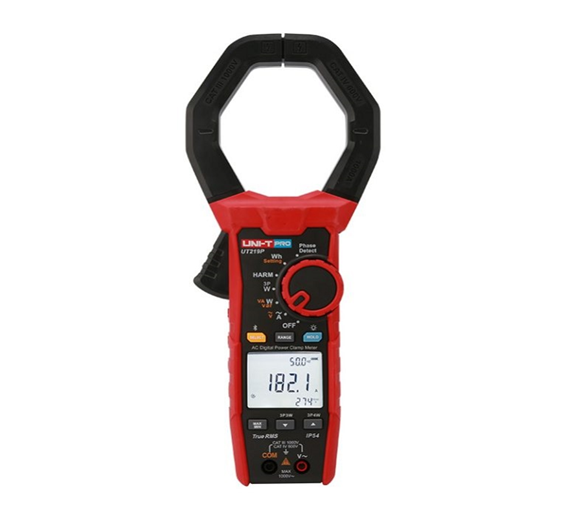

UNI-T UT219P AC Digital Power Clamp Meter
Clamp Meters

UNI-T UT219P AC Digital Power Clamp Meter

Condition: New
Brand: UNI-T
Availability: In Stock
Share:

UT219P is an intelligent, handheld, and stable power and harmonics clamp meter, with the functions of a digital ammeter and power meter. It can measure harmonics, 3-phase unbalanced voltage, AC voltage, AC current, power, power factor, and more.

It is widely used in photovoltaic power stations, motor manufacturing, and power/harmonic measurement of electrical equipment and distribution cabinets in residential enterprises.

SKU: TCBOX88

Rs.59000 Rs. 73750

Features of UT219P AC Digital Power Clamp Meter

  • 1000A AC current measurement
  • 1000V AC voltage measurement
  • AC and DC PEAK measurement
  • Three-phase power measurement (up to 3000kW)
  • Harmonic/THD/Power Factor/Phase Sequence Measurement
  • Single Phase power measurement
  • Large pliers head (up to 75mm diameter)
  • True RMS measurement
  • Bluetooth 5.0
  • CAT III 1000V/CAT IV 600V
  • IP54
  • Certificates: CE, ETL, REACH, FCC

Specifications of UT219P AC Digital Power Clamp Meter

Specifications Range Accuracy
AC current (A) 1000A ±(1.5%+3)
AC voltage (V) 1000V ±(0.7%+3)
Power (single phase) 1000KW ±(1.7%+5)
Power (3-phase & 3-wires) 1732KW
Power (3-phase & 4-wires) 3000KW
Power frequency (Hz) 15Hz~1000Hz ±(0.3%+3)
Phase angle (-180°~ 179.9°) 15Hz~40Hz ±5°
40Hz~70Hz ±3°
70Hz~1000Hz ±5°
Power factor -1 ~ 1 based on the Accuracy
of the  Phase angle
Features
Jaw opening 75mm
Phase detection √(80V~1000V)
Positive and Negative
AC/DC PEAK measurement
Harmonic measurement 32 times
Display mode LCD screen
4 kinds of results at the same time
Display count 9999
Bluetooth app
True RMS
Overload indication
High voltage indication
High voltage overload warning
Low battery indication
Data hold
Auto power off Around 15 minutes
Max/Min
Overvoltage category CAT III 1000V/CAT IV 600V
Certificate CE, UKCA, cETLus
