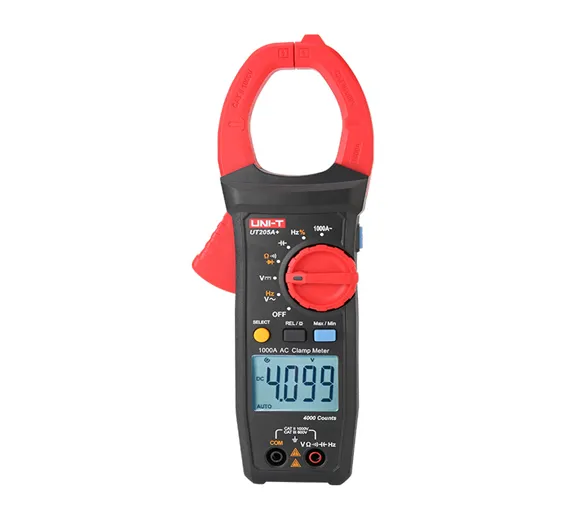

UNI-T UT205A+ 1000A AC Clamp Meters
Clamp Meters

UNI-T UT205A+ 1000A AC Clamp Meters

Condition: New
Brand: UNI-T
Availability: In Stock

UT205A+/UT206A+ 1000A AC clamp meters are reliable and portable tools for electronics and electrical maintenance. Featuring a lightweight and slim design, and backlight for working in dark environments. These meters also feature duty cycle, NCV, MAX/MIN, and Inrush current measurement.


Ask Price

Features of UT205A+/UT206A+ 1000A Digital Clamp Meters:

  • 1000A AC current measurement
  • 1000V AC/DC voltage measurement
  • 600A inrush current measurement (UT206A+)
  • Temperature  (UT206A+)
  • NCV (UT206A+)
  • ACV frequency 10Hz~10kHz
  • Jaw opening: 45mm
  • Resistance / capacitance / frequency measurement
  • Auto range / backlight / low battery indication
  • Continuity / diode / duty cycle
  • Data hold / flashlight / relative mode
  • Auto power off
  • CAT II 1000V/CAT III 600V

Specifications of UT205A+/UT206A+ 1000A Digital Clamp Meters:

Specifications Range UT205A+ UT206A+
AC current (A) 1000A ±(1.5%+5) ±(1.5%+5)
Inrush current (A) 600A   ±(5%+10)
AC voltage (V) 1000V ±(1.0%+2) ±(1.0%+2)
ACV frequency (Hz) 10Hz~10kHz ±(1.0%+5) ±(1.0%+5)
DC voltage (V) 1000V ±(0.7%+3) ±(0.7%+3)
Resistance (Ω) 40MΩ ±(0.8%+2)
60MΩ   ±(0.8%+2)
Capacitance (F) 40mF ±(4%+5)
60mF   ±(4%+5)
Frequency (Hz) 10.00Hz~10.00MHz ±(0.1%+4) ±(0.1%+4)
Temperature (℃/℉) –40℃~1000℃/–40℉~1832℉   ±4℃/±5℉
Display count   4099 6099
Jaw opening   45mm 45mm
Auto range
Duty cycle
Diode test
Low battery indication <2.5V approximately
Data hold
Auto power off  Approximately 15 minutes
Safety rating CAT II 1000V/CAT III 600V
General Characteristics
Power AAA 1.5V x 2
Standard accessories Test leads, batteries, temperature probe(UT206A+), English manual
Product color Red+Gray
Product net weight 235g (Including batteries)
Product size 242×76.5x52mm
Standard individual packing Gift box,carrying bag
Standard quantity per carton 20 pcs
Standard carton measurement 420*290*280mm
