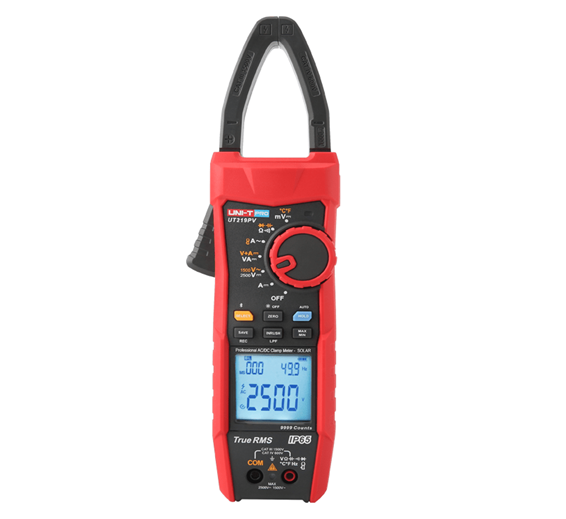

UT219PV Professional AC/DC Clamp Meter
The UT219PV is an advanced AC/DC clamp meter specially designed for high-voltage photovoltaic environments. It offers exceptional accuracy and performance, with a wide range of features. With its automatic range selection and a clear display capable of showing up to 9999 digits, this clamp meter allows for precise measurements of AC/DC voltage, current, low-pass filtered voltage/current, surge current, peak current, DC power (using an external flexible clamp head), resistance, circuit continuity, diodes, capacitance, and temperature. Its versatility extends beyond photovoltaic applications, as it can also be used in other high-voltage settings like energy storage systems, uninterruptible power supplies (UPS), and large motors.
SKU: TCBOX881
Features of UT219PV Professional AC/DC Clamp Meter
- Certifications (UT219PV only): CE, RoHS, cETLus
- 35mm Ultra-thin Jaw: suitable for inverter or combiner box
- Voltage measurement: AC1500V/DC2500V
- Current measurement: AC/DC 1000A
- Power DC: 2500KVA
- External clamp sensor: UT-CS09D(AC 3000A)
- Solar panel polarity indication: when <-10 DCV, Audible & Visual alarm
- Bluetooth APP
- Auto backlight & Auto power off
- Safety rating:CAT III 1500V/ CAT IV 600V
- IP65
Technical Specifications of UT219PV Professional AC/DC Clamp Meter
| Technical Specifications | ||
| Current (ACA) | 999.9 A | 40Hz~100Hz: ±(2.0%+5) 100Hz~1000Hz: ±(2.5%+5) |
| Current (DCA) | 999.9 A | ±(2.0%+5) |
| Voltage (ACV) | 999.9V/1500V | 40Hz~1000Hz: ±(1.0%+5) |
| Voltage (DCV) | 999.9V/2500V | ±(1.0%+5) |
| Voltage (DC mV) | 999.9 mV | ±(1.0%+5) |
| ACV(with LPF) | 999.9V | ±(2.0%+9) |
| ACA(with LPF) | 999.9A | ±(2.5%+9) |
| ACA(with LPF): flex clamp sensor | 30.00A/300.0A/3000A | ±(4.0%+9)(center area) |
| ACA;with flex clamp sensor | 30.00A/300.0A/3000A | ±(3.0%+5) (center area) |
| Power (DC) | 999.9 kVA/2500 kVA | ±(2.0%+20) |
| Frequency (A&V) | 5.0 Hz to 999.9Hz | ±(0.5%+5) |
| Resistance (Ω) | 999.9Ω/9.999KΩ/99.99kΩ | ±(1.0%+5) |
| Cpacitance(F) | 100.0μF/1000 μF | ±(1.0%+5) |
| Temperature | -40?~400?/-40?~752? | ±(1.0%+30); ±(1.0%+60) |
| Features: | ||
| True RMS | √ | |
| Display count | 9999 | |
| Display | LCD: Dual display (V+A) | |
| Jaw (Max conductor dia.) | 35mm | |
| Diode | √ | |
| Solar panel polarity indication | when <-10 DCV, Audible & Visual alarm | |
| High voltage alarm | √ | |
| Over range indication | √ | |
| AUTO HOLD | √ | |
| Inrush current | √ | |
| PEAK | √ | |
| Bluetooth app | BT 5.0 | |
| Auto backlight | √ | |
| Low battery indication | √ | |
| Flexiable clamp compatible | UT-CS09D (optional) | |
| IP rating | IP65 | |
| Overvoltage category | CAT III 1500V; CAT IV 600V | |
| Certificates | CE, cETLus, RoHS | |
| General Characteristics | ||
| Power supply | 2 * AA | |
| Product dimension | 295mm x 73mm x 50mm | |
| Product color | Grey + Red | |
| Accessories | test probe, temperature probe, batteries, manual | |
Applications of UT219PV Professional AC/DC Clamp Meter
Ultra-thin Clamp
35mm ultra-thin clamp, designed for narrow gaps in the combiner or inverter and other tight spaces environment.
External clamp sensor
The UT-CS09D flex clamp sensor is supported, which means the AC current measurement range can expand to 3000A, and the flexible coils can handle measurements in narrow spaces.
Polarity indication
If the voltage is below -10V DC, the system will activate a series of indicators: The red LED will flash for a period of 10 seconds, accompanied by buzzing. Additionally, the LCD screen will display the "POLARITY" symbol, alerting the user to the reversed probe.
Bluetooth APP
By utilizing the Bluetooth app, you can conveniently record the testing results and measurement details. Moreover, the testing reports and data can be effortlessly transported and shared with your colleagues or team members.
