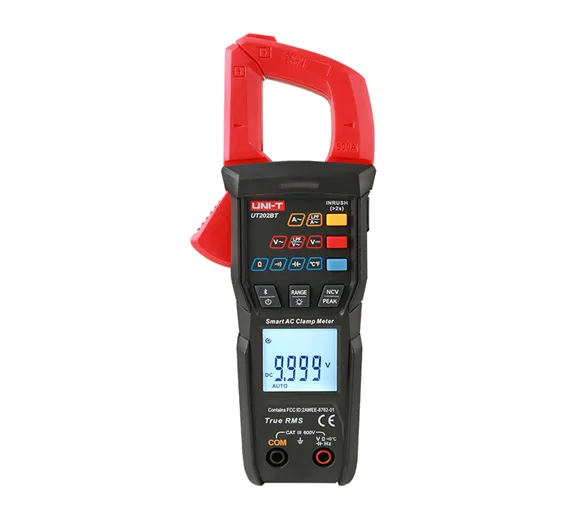

UNI T UT202BT Smart AC Clamp Meters
Clamp Meters

UNI T UT202BT Smart AC Clamp Meters

Condition: New
Brand: UNI-T
Availability: In Stock

UT202BT is a Bluetooth smart clamp meter designed with low pass filter mode, and inrush current detection, peak hold, and other traditional clamp meter functions.


Ask Price

Features of UT202BT Smart AC Clamp Meters:

  • Button-design clamp meter
  • One-hand operation and easy to use
  • True RMS / 9999 counts
  • Jaw opening: 28mm
  • 600V AC/DC voltage measurement
  • 600A AC current measurement
  • Dual display: V+HZ and A+HZ
  • Bright backlight / Flashlight
  • Non-contact voltage (NCV)
  • CAT III 600V

Specifications of UT202BT/UT202T Smart AC Clamp Meters:

Specifications Range UT202T UT202BT
Certificates CE/UKCA/cETLus
DC voltage (V) 600V ±(0.5%+3) ±(0.5%+3)
AC voltage (V) 600V ±(0.8%+3) ±(0.8%+3)
AC current (A) 600A ±(2.5%+5) ±(2.5%+5)
Resistance (Ω) 6MΩ ±(0.8%+3)
100MΩ   ±(0.8%+3)
Frequency (Hz) 40Hz~1000Hz ±(1.0%+5) ±(1.0%+5)
Capacitance (F) 100mF ±(4%+5) ±(4%+5)
Temperature (℃/℉) -40℃~1000℃/-40℉~1832℉   ±5/±9
Jaw opening   28mm 28mm
Display count   9999 9999
Dual display
Auto range
PEAK hold
Low pass filter
Inrush current
Audible visual indication
Low battery indication <2.4V approximately
Data hold
Auto power off Approximately 15 minutes
Safety rating CAT Ⅲ 600V
General Characteristics
Power AAA 1.5V x 2
Product color Red+Gray
Product net weight UT202T: 241g (Including batteries); UT202BT: 251g (Including batteries)
Product size 201.5 x 47 x 28mm
Standard accessories UT202T: Test leads, batteries; UT202BT: Test leads, batteries, temperature probe
Standard individual packing Gift box, carrying bag, English manual
Standard quantity per carton 40 pcs
Standard carton measurement 485×295×385mm
