CD4013 D Type Flip Flop

Condition: New
Availability: In Stock
Advance Payment Only


Rs.90 Rs. 113

CD4013 consists of two identical, independent data-type flip-flops. Each flip-flop of CD4013 has independent data, set, reset, and clock inputs and Q and Not Q outputs. These devices can be used for shift register applications, and, by connecting Q output to the data input, for counter and toggle applications.

Features of CD4013D type flip-flop:

  1. Power Delivery
  2. Grid Infrastructure
  3. Medical, Healthcare, and Fitness
  4. Body Electronics and Lighting
  5. Building Automation
  6. Telecom Infrastructure
  7. Test and Measurement

Features of CD4013D type flip-flop:

  1. Functions: Setting (Preset) and Resetting
  2. Type: Type D
  3. Output type: differential
  4. Number of components: 2
  5. Bit per component: 1
  6. Frequency-clock: 24MHz
  7. Maximum propagation delay at different V, maximum CL: 90ns @ 15V, 50pF
  8. Trigger Type: Positive Edge
  9. Current-output high, low: 6.8mA, 6.8mA
  10. Voltage-power supply: 3V~18V
  11. Current-static: [4] UA
  12. Input Capacitance: 5pF

Package Includes:

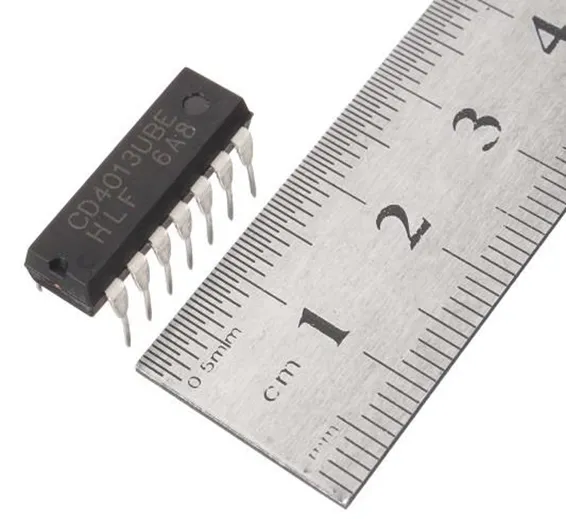

1 x CD4013 DIP14.
