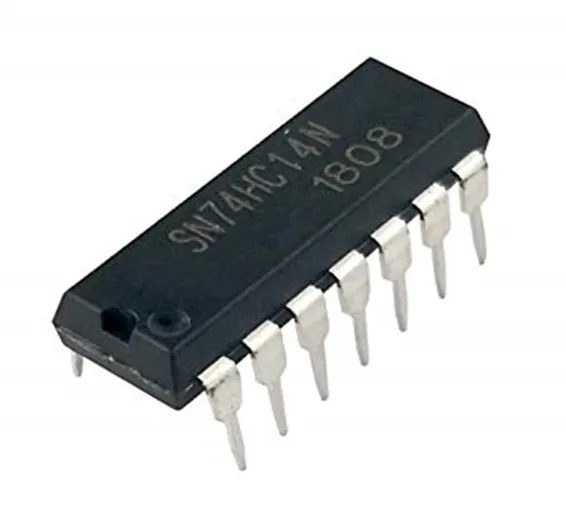

74HC14 ICs hex inverter with Schmitt-trigger inputs in Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: DBS 129

Rs.50 Rs. 63

The 74HC14; 74HCT14 is a hex inverter with Schmitt-trigger inputs. This device features reduced input threshold levels to allow interfacing to TTL logic levels. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.

Features:

  • Complies with JEDEC standard no. 7A
  • Low-power dissipation
  • ESD protection:
  • HBM JESD22-A114F exceeds 2000 V
  • MM JESD22-A115-A exceeds 200 V
  • Multiple package options
  • Specified from 40 C to +85 C and from 40 C to +125 C

Applications

  1. Wave and pulse shapers
  2. Astable multivibrators
  3. Monostable multivibrators

Package Includes:

1 x 74HC14 ICs hex inverter with Schmitt-trigger inputs
