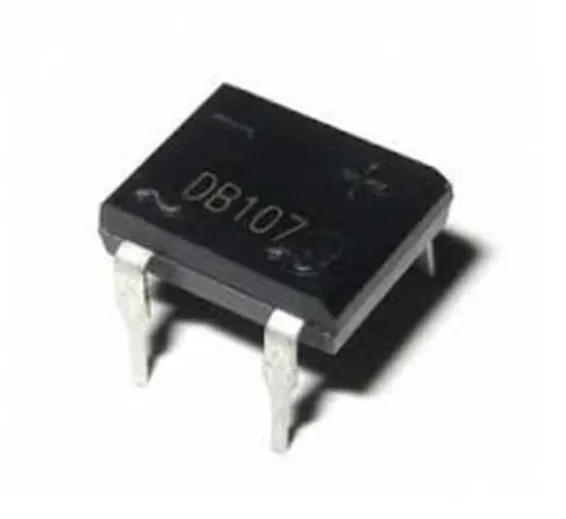

DB107 1Amp 1000V Bridge Rectifier Diode IC

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: SB209,IMP100,Th25,KRT

Rs.10 Rs. 13

DB107 1Amp 1000V Bridge Rectifier Diode IC is an arrangement of four diodes in a bridge circuit configuration. DB107 1Amp 1000V Bridge Rectifier Diode IC, that provides the same polarity of output for either polarity of input. When used in its most common application, for conversion of an alternating-current (AC) input into a direct-current (DC) output, it is known as a bridge rectifier. A bridge rectifier provides full-wave rectification from a two-wire AC input, resulting in lower cost and weight as compared to a rectifier with a 3-wire input from a transformer with a centre-tapped secondary winding.

Features of DB107 1Amp 1000V Bridge Rectifier Diode IC:

  • Good for automation insertion
  • Surge overload rating – 40 amperes peak
  • Ideal for printed circuit board
  • Reliable low-cost construction utilizing moulded
  • Glass passivated device
  • Polarity symbols moulded on the body
  • Mounting position: Any
  • Weight: 1.0 gram

Specifications of DB107 1Amp 1000V Bridge Rectifier Diode IC:

Bridge Type Single Phase Peak Average Forward Current 1A Peak Reverse Repetitive Voltage 1000V Mounting Type Through Hole Package Type DB Pin Count 4 Configuration Single Maximum Operating Temperature 150°C Minimum Operating Temperature -55°C Peak Forward Voltage 1.1V Peak Reverse Current 500A Lenght 8.8mm Height 3.4mm Junction Capacitance 25pF Width 6.5mm Dimensions 8.8 x 6.5 x 3.4mm

Package Includes:

  • 1 x DB107 1Amp 1000V Bridge Rectifier Diode IC
