4 Axis 6 Axis CNC Breakout Board Stepper Motor Driver Breakout Board For CNC Engraving Machine MACH3V2.1-L Adapter Controller

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B 148 , D 154,IMP0,Th0,KRT

Rs.4800 Rs. 6000

4 Axis 6 Axis CNC Breakout Board Stepper Motor Driver is used to run the signal processing of the host computer ( LPT port ), with MACH3 CNC system software, and the peripheral machine dynamic electrical. It is suitable for CNC engraving machine, CNC lathe, CNC plasma cutting machine, laser engraving machine, CNC milling machines, machining centers, and other machine tools. With the host computer and the MACH3 series software, it can be the most cost-effective CNC system. It is used to run the signal processing of the host computer ( LPT port ), with MACH3 CNC system software, and the peripheral machine dynamic electrical. It is suitable for CNC engraving machine, CNC lathe, CNC plasma cutting machine, laser engraving machine, CNC milling machines, machining centers, and other machine tools. With the host computer and the MACH3 series software, it can be the most cost-effective CNC system.

There are 5 input signals, communicating with the host computer, which is isolated by the optical coupling. Among the optical coupling isolation, the P11 and P12 are high-speed, which can be used for connecting main shaft encoder, or the same demanding signal as hand wheel A, B. 12V-OUT and 5V-OUT power output interface can be used to pick some necessary power, such as the hall sensor switch and the proximity switch. There are 5 input ports, set to limit, origin, knife, start, stop, spindle speed input, MPG input, and any other one of the 5 functions.

Features:

  • A special high-speed chip is used to process the input and output (I/O) signals. It is capable of making the machine work stably, with the features of correcting and enlarging the signals that removing the unnecessary disturbing signals.
  • The computer LPT port supplies the power individually, separating from the power supply of other parts. Therefore, the computer and machine tool isolate effectively. It makes the data more secure, with further insurance of security and stability.
  • The high-speed optical coupling isolation is used to control the rotational speed of the spindle. The output port is parallel port P1, which can output the PWM signal within 2.5KHZ. On the interface board, there is a D/A circuit, with PWM to a 0-10V. The circuit can output 0-10V level to control the inverter which only has analog speed control in the market. Thus it can control the rotational speed of the spindle.
  • The interface board can be connected with the cathode or total output to the stepper drive, or servo drive (servo driver must support the digital signal). The output is the 5V level.
  • Wide input voltage power supply: 15-32VDC. The function of preventing reverse connection protection. 2 groups of output voltage: 5V and 12V voltage, 100MA output capacity.

Specifications:

  1. Model: MACH3V2.1-L
  2. USB: Type B
  3. Size: 11×7.5×2.4cm/4.3×2.95×0.9in

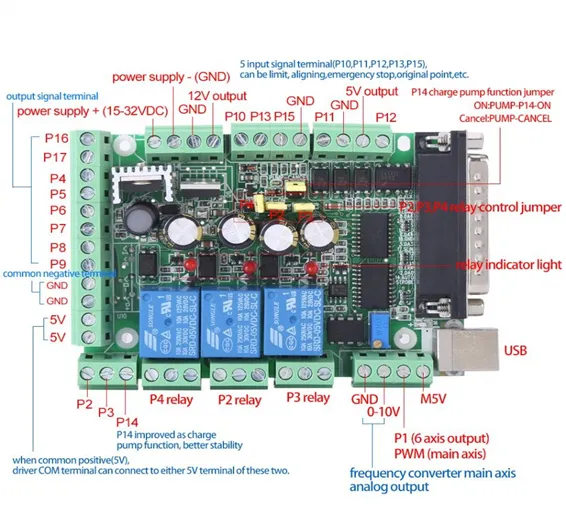

5 Input Ports Functions:

  1. P10: emergency stop
  2. P11: Reserved
  3. P12: Reserved
  4. P13: 3 axis limit
  5. P15: Reserved

11 Output Ports Functions:

  1. P4: X pulse
  2. P5: X direction
  3. P6: Y pulse
  4. P7: Y direction
  5. P8: Z pulse
  6. P9: Z direction
  7. P16: 4 pulse
  8. P17: 4 direction
  9. P2: Relay port
  10. P3: Relay port
  11. P14: Charge pump

Package Includes:

  • 1 x Breakout Board
