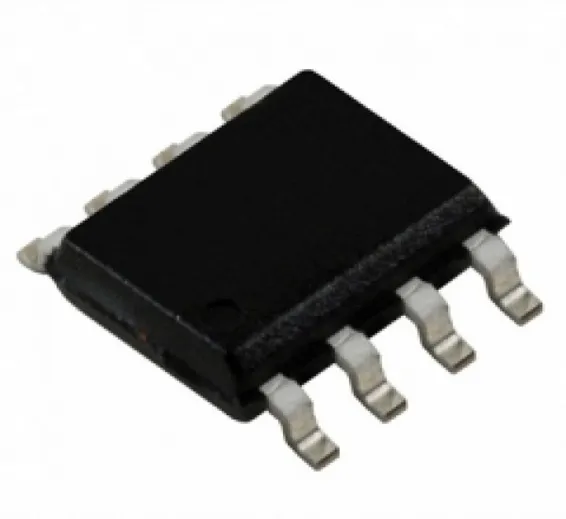

W25Q64FVSIG 25Q64, 64M-BIT FLASH 8M X 8 SPI Bus Serial EEPROM BIOS Chip
Semiconductor ICs

W25Q64FVSIG 25Q64, 64M-BIT FLASH 8M X 8 SPI Bus Serial EEPROM BIOS Chip

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: SB170,LS10,Th5,KRT

Rs.200 Rs. 250

W25Q64FV

64M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI and QPI

Features:

  1. Single/Dual/Quad SPI amd QPI operation
  2. Uniform 4KB erasable sectors & 32KB/64KB erasable blocks
  3. 32,768 pages (256 bytes), page program in 0.7mS (typ.)
  4. Continuous Read with 8/16/32/64 Byte Wrap
  5. Quad Peripheral Interface (QPI) reduces instruction overhead
  6. Clock operation up to 104MHz (208/416MHz equivalent with Quad I/O Read)
  7. 2.7 to 3.6V power supply
  8. 4mA active read current, 1?A power down current
  9. -40? to 85?C operating range
  10. Program/Erase Suspend/Resume, Suspend Status Bit
  11. Factory-programmed unique ID
  12. Electronic ID with Dual/Quad I/O, Hardware and software write protection for top or bottom blocks
  13. Volatile & Non-volatile Status Register Bits
  14. Lock-Down and OTP protection
  15. Serial Flash Discoverable Parameters(SFDP)
  16. 3X256byte Security Registers with OTP locks
  17. Complement Array Protection Bit
  18. Software Reset
