- VOLTAGE RANGE: 0.0001V~100.00V
- RESISTANCE RANGE: 0.001mΩ~30.00Ω
- ACCURACY: Voltage:0.05% ,Resistance:0.5%
- CONNECTIVITY: Type-C , USB DEVICE
- SIZE: Portable
- DISPLAY: 3.5'' TFTLCD & 0.96'' OLED
SKU: TCBOX88

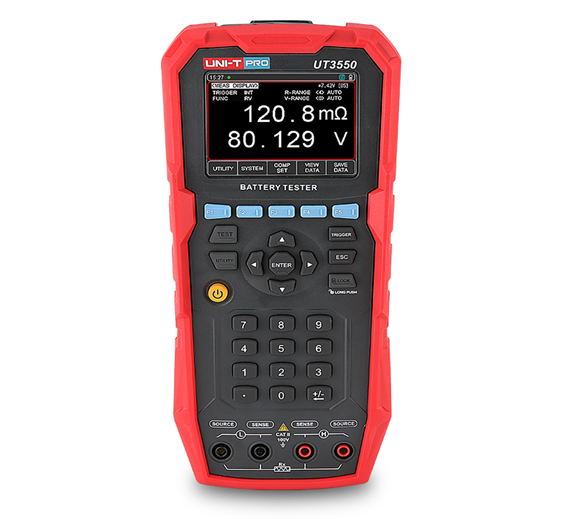

UNI-T UT 3550 Battery Tester
UT3550 is a hand-held battery tester with automatic real time detection. It has the portability of handheld instruments and the superior performance of Bench instruments. It is a measuring instrument with high accuracy and high resolution. with USB type C interface for remote control and data acquisition and analysis. Support SCPI protocol. It is mainly used in the quality inspection of various batteries. UPS can be directly measured online with high accuracy.
Specifications of UT3550 Battery Tester
- MODEL: UT3550
- VOLTAGE RANGE: 0.0001V~100.00V
- RESISTANCE RANGE: 0.001mΩ~30.00Ω
- ACCURACY: Voltage:0.05% ,Resistance:0.5%
- CONNECTIVITY: Type-C , USB DEVICE
- SIZE: Portable
- DISPLAY: 3.5'' TFTLCD & 0.96'' OLED
Features of UT3550 Battery Tester
Sorting function
Three comparison modes: direct reading value, percentage and absolute value. Help you with quick battery screening.
High measurement accuracy
- Resistance measurement range： 0.001mΩ~30.00Ω
- Voltage measurement range： 0.0001V～100.000V
Timing test and save data function
Set the interval time to automatically record the measurement data. Up to 500 sets of data can be saved. Exportable CSV format documents to USB flash disk to facilitate data analysis.
Interface & Protocol Support
- Standard interface: Type-C (host computer control) USB (save data/screenshot) charging interface
- The instrument supports SCPI protocol for remote control and data acquisition
- Top secondary display with lanyard/shoulder strap to meet more test occasions
Standard PC software
Support remote control, PC can set, view and analyze data
