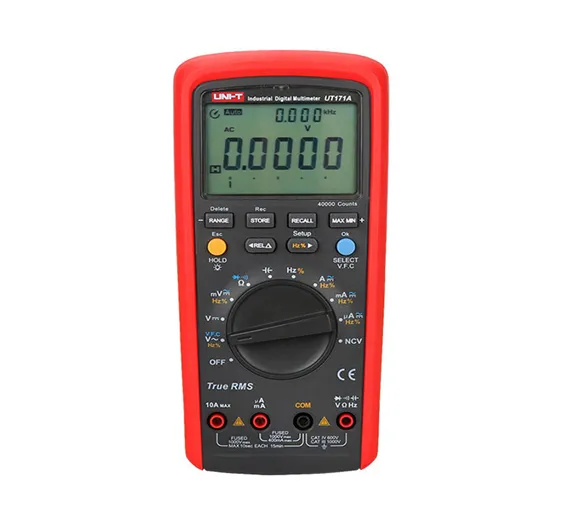

UNI-T Industrial True RMS Digital Multimeter UT171A

UNI-T Industrial True RMS Digital Multimeter UT171A

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only


Ask Price

UNI-T UT171A multimeter is an industrial-grade multimeter used by professionals. The UT-171A electronics RMS multimeter, Its built-in square wave output is useful for troubleshooting industrial control signals. UT 171 A true RMS meter, its LoZ (ACV) feature can be used to identify residual (ghost) voltage in large capacitors. This digital meter is with smart design and fast working features.

Features Of UNI-T Best RMS True Multimeter UT 171A:

  • Variable square wave signal output (frequency 0.5Hz ~4800Hz, low impedance) & 40000 / 60000 Counts / True RMS;
  • Measurement speed (5 times /s) is two times faster than the others & AC LoZ Voltage test;
  • AC / DC uA / mA / A current test & AC+DC measurement mode;
  • Resistance, electrical conductivity nS measurement & VFC household / industrial frequency conversion voltage test;
  • Electronic storage record 1000 & CAT III 1000V / CAT IV600V.

Specification Of DC/AC V/A Ohm/Hz Capacitance Tester UT-171A:

  1. DC Voltage: 400mV/4V/40V/400V/1000V
  2. DC Voltage Accuracy: ±(0.025%+5)
  3. AC Voltage: 400mV/4V/40V/400V/1000V
  4. AC Voltage: Accuracy: ±(0.4%+40)
  5. DC Current: 400μA/4000μA/40mA/400mA/4A/10A
  6. DC Current Accuracy: ±(0.15%+10)
  7. AC Current: 400μA/4000μA/40mA/400mA/4A/10A
  8. AC Current Accuracy: ±(0.75%+20)
  9. Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
  10. Resistance Accuracy: ±(0.05%+2)
  11. Capacitance: 4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF
  12. Capacitance Accuracy: ±(2.5%+40)
  13. Frequency: 10Hz~10MHz
  14. Frequency Accuracy: ±(0.01%+5)
  15. Display Count: 40000
  16. Auto/Manual Range: Yes
  17. True RMS: Yes
  18. Bandwidth: 100kHz
  19. VFC: Yes
  20. Diode test: Yes
  21. Continuity Buzzer: Yes
  22. Duty Cycle: Yes
  23. NCV: Yes
  24. Data Hold/MAX/MIN: Yes
  25. Relative Mode: Yes
  26. Data Storage: 1000
  27. USB Interface: Yes
  28. LCD Display: Yes
  29. LCD Backlight: Yes
  30. Analogue Bar Graph: 31
  31. Mis-plug Alarm: Yes
  32. Low Battery Indication: Yes
  33. Auto Power Off: Yes
  34. Input Protection: Yes
  35. Input Impedance for DCV: Around 10MΩ
  36. Power: 6x 1,5V AAA
  37. LCD Size: 70,6x49,5mm
  38. Weight: 384g
  39. Size: 206x95x55mm

Package includes:

  • 1 x UNI-T UT171A Professional Intelligent Digital Multimeter
  • 2 x Test Leads
  • 1 x Point contact temperature probe
  • 1 x USB interface cable
  • 1 x PC software CD
  • Batteries
