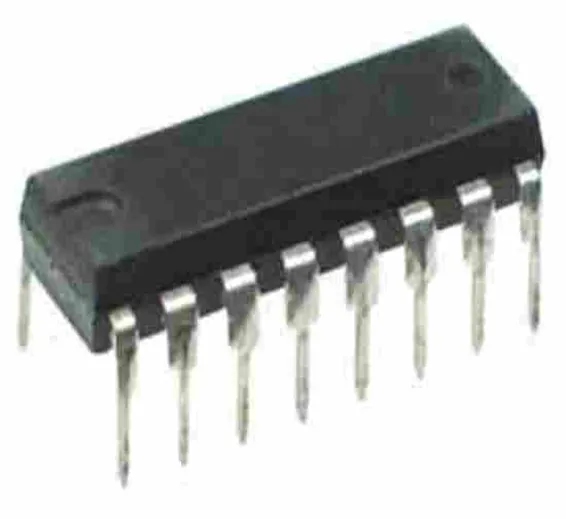

SN74LS05 IC Hex Inverter

The SN74LS05 device contains six independent inverters. To perform correctly, the open-collector outputs require pullup resistors. These devices (SN54LS05, SN54S05, SN7405, SN74LS05, SN74S05) (hex inverters) may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices often are used to generate high VOH levels.

Features:

• Hex Inverter with Open-collector Output
• Contains six inverters

Applications:

• Hex inverter

DataSheet:

SN74LS05 Datasheet

Package Includes:

• 1x SN74LS05 IC

• SKU: SKU: DBS125,LS30,Th20,KRT
• /
• Category: Semiconductor Components & ICs
• /
• Tags: SN74LS05 IC Hex Inverter
