ESP32 Wemos LoLin32 ESP32, WiFi + Bluetooth + LiPo battery connector
Bluetooth & WIFI

ESP32 Wemos LoLin32 ESP32, WiFi + Bluetooth + LiPo battery connector

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: B 352 , D 134,IMP10,L5,Th2,KRT

Rs.1700 Rs. 2125

Online Shopping website for ESP32 Wemos LoLin32. Here you get ESP32 Wemos LoLin32 in reasonable price in karachi, lahore, islamabad, rawalpindi, peshawar, quetta, multan and all over pakistan

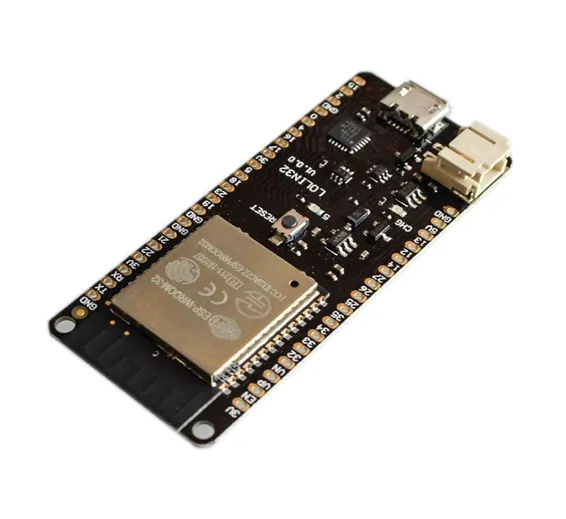

The Wemos LoLin32 is a development board built around the Espressif ESP-WROOM-32 microcontroller. It boasts 4MB of memory and offers WiFi and Bluetooth connectivity. The Wemos LoLin32 has the particularity to propose a connector for LiPo battery. The connector is JST XH2-2mm. It has a key that prevents reverse polarity. Charging the battery and programming will be done using the usual micro-USB connector.

Unlike the first ESP32 development cards, this card developed by Wemos.cc is narrower. It leaves a row of connectors on each side of the board free on the breadboard.

The WeMos LOLIN32 board is based on the ESP-WROOM-32 module and adds a LiIon/LiPo battery charging circuit, a USB to serial converter IC and a USB port. Solder the headers to the PCB and use it directly on any breadboard. The ESP8266 is great for small projects where you don't need so many I/Os, processing power or interfaces.

Specifications:

  1. 240 MHz dual-core Tensilica LX6 microcontroller with 600 DMIPS
  2. Integrated 520 KB SRAM
  3. Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
  4. Integrated dual-mode Bluetooth (classic and BLE)
  5. 4 MByte flash include in the WROOM32 module
  6. On-board PCB antenna
  7. Ultra-low noise analog amplifier
  8. Hall sensor
  9. 10x capacitive touch interface
  10. 32 kHz crystal oscillator
  11. 26 x Digital I/O pins
  12. 12 x ADC input channels
  13. 2 x I2S Audio
  14. 2 x DAC
  15. PWM/timer input/output available on every GPIO pin
  16. OpenOCD debug interface with 32 kB TRAX buffer
  17. SDIO master/slave 50 MHz
  18. SD-card interface support

Resources

  1. ESP32 Datasheet
  2. Schematic
  3. Driver Download
  4. ESP32 Firmware

Package Includes:

  1. 1 X WeMos ESP32 + LiPo Input
  2. 2 X 20 Pin Header
