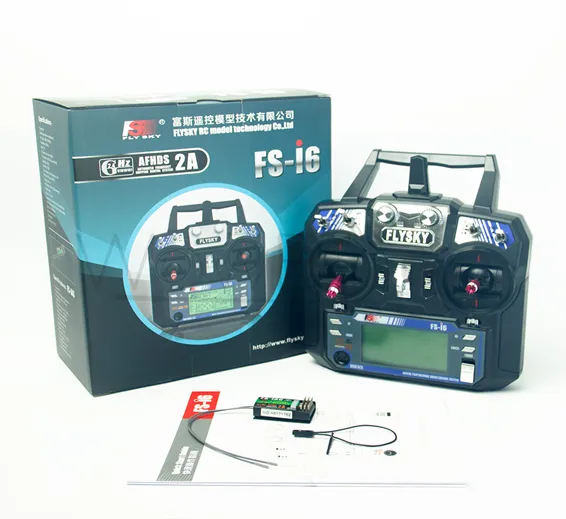

6 Channel RC Transmitter Receiver Flysky FS-I6 Transmitter With FS-IA6 Receiver
RF Modules

6 Channel RC Transmitter Receiver Flysky FS-I6 Transmitter With FS-IA6 Receiver

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: TMD,Th,KRT

Rs.20000 Rs. 25000

FlySky FS-i6 AFHDS 6CH Transmitter and 6CH FS-iA6B Receiver. Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.Silm design on transmitter for easy handling! This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety. This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption. AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs. AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

Package Included: 1 x FS-i6 transmitter 1 x FS-iA6 Receiver or FS-IA6B receiver

Features:

  1. 6 channel 2.4ghz radio with telemetry capability
  2. Dual Rate/Trims/Gear/Flap/Gyro Gain Adjust/Flight Mode/Throttle Hold/Hover Pitch Switches
  3. Easy to use Programming & Navigation Buttons
  4. Supports Heli/Standard Wing/Elevon/V-Tail
  5. 20 Model Memory
  6. 8 Character Model Name
  7. Trainer port
  8. Backlit LCD Screen displays real time transmitter and receiver voltage
  9. 4 Stick Mode Selectable
  10. Optional telemetry receivers and sensors available separately

Specifications:

  1. Channels: 6
  2. Model Type: fixed-wing / glider / helicopter/ multirotor
  3. RF Range: f2.405-2.475Ghz
  4. Bandwidth: 500Khz
  5. Band: 142
  6. RF Power: Less than 20 dBm
  7. 2.4G System: AFHDS 2A and AFHDS
  8. Code type: GFSK
  9. Sensitivity: 1024
  10. Low voltage warning: Less than 4.2V
  11. DSC port: PS2; output:PPM
  12. Charger port: No
  13. ANT length: 26mm*2 (dual antenna)
  14. Weight: 392g
  15. Power: 6V 1.5AA*4
  16. Display mode: Transflective STN positive type,128*64 dot matric VA73*39mm, white backlight
  17. Size: 174*89*190mm
  18. Online update: Yes
  19. Certificate: CE0678,FCC

Includes:

  1. 1x FlySky FS-i6 6 CH Transmitter
  2. 1x Manual/Quick Start Guide on CD-Rom
  3. 1x FlySky FS-iA6B (AFHDS 2A)
