4 Channels RF Remote Control Module DC 12v
Other Modules

4 Channels RF Remote Control Module DC 12v

Condition: New
Availability: Out Of Stock
Advance Payment Only
Share:

SKU: B43,IMP10,Th5,KRT,N177

Rs.1200 Rs. 1500

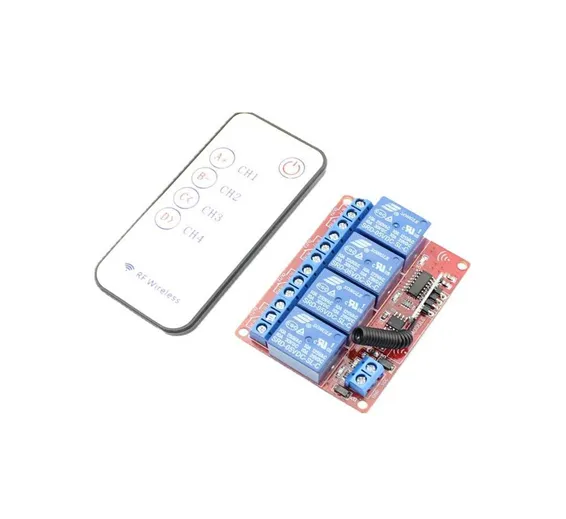

This 4 Channels RF wireless Remote Relay Control Module DC 12V (ER-CRF00504C) relay module whose output is passive output, can be controlled by its 5-button RF wireless controller, when the module is powered on. The module must be equipped with a suitable remote control, it also can drive most of household electrical appliances.

Features:

  1. Able to control various appliances and other equipments with large current
  2. Equipped with high-current relay
  3. Standard interface that can be controlled directly by microcontroller
  4. LED indication for Relay output status

Specification

  1. Working voltage: DC 12V
  2. Working current: about 220mA
  3. Quiescent current: about 6mA
  4. MAX Load Voltage:10A 250VAC or 10A 30VDC
  5. Module size: 65 x 50 x 20mm
  6. Module type: 433m RF wireless receiving
  7. Remote control distance: 15-30 meters
  8. Work status: Self-locking
  9. The work instructions LED: D1-D4(relay), D5(power)

Package list

  1. 4 Channels RF Remote Control Module DC 12V 1x
  2. 5 key RF wireless 1x
