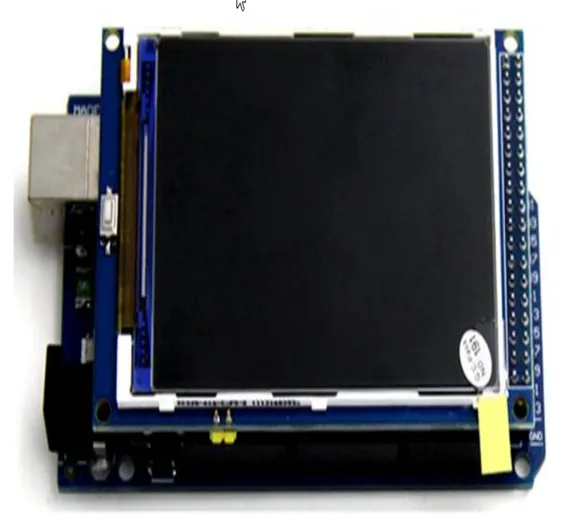

3.2 inch IPS TFT LCD Display ILI9481 480X320 36 Pins for Arduino Mega2560

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B320,IMP10,Th5,KRT,N47

Rs.1200 Rs. 1500
This 262K color 320 x 480 resolutions LCD module uses a thin-film-transistor liquid crystal display (TFT LCD) to improve image qualities. With controller HX8357B included in the screen, it supports 16-wires DataBus Interface. This module also includes 5V-3.3V power conversion circuit and a level conversion circuit. 100% compatible with Mega2560, it can be directly inserted into the Mega 2560 Board. Additionally, it comes with SD card socket and SPI flash circuit. Definitely a powerful module for your projects!

Specifications:

  1. Display Type: 3.2 inch TFT LCD
  2. Glass Type: TFT IPS(Full-Angle)
  3. Display Resolution: 480 X 320 Pixels
  4. Back light: 6 chip HighLight white LEDs
  5. Control IC: HX8357B
  6. Interface: 16Bit Parallel Interface
  7. PCB Module size: 89.92mm X 54.25mm
  8. Active Area(WxH): 67.68mm X 45.12mm
  9. Power Consumption: 80 – 110(mA)
  10. Power: 5V/3.3V
  11. Touch Function: none
  12. Module Interface: 36Pin (Compatible with Arduino Mega2560)

Package includes:

  • 1 x 3.2 Inch 320 X 480 Ultra HD TFT LCD Display Module for Arduino Mega2560 Board
