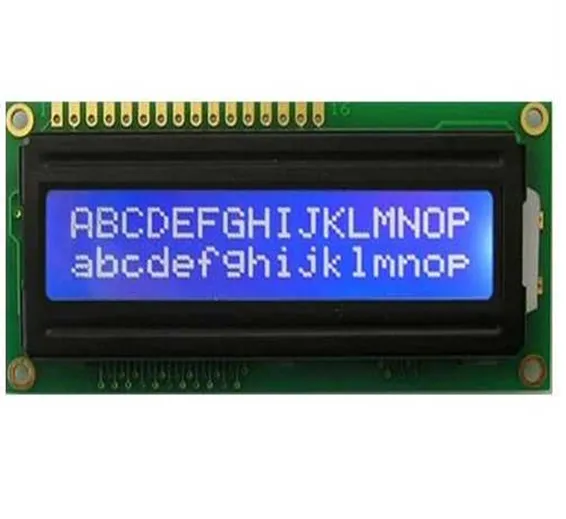

Blue 1602 LCD 16x2 Character LCD Arduino Display For Arduino

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B327,,D135,IMP100,Th50,KRT06

Rs.240 Rs. 300

1602 16x2 Blue Character LCD Display For Arduino is a basic 16 character by 2 lines Alphanumeric display. This LCD 16x2 Character LCD Display has White text on a blue background. Utilizes the extremely common HD44780 parallel interface chipset. Interface code is freely available. You will need Minimum 6 general I/O pins to interface to this LCD screen. Includes LED backlight. Works in 4bit and 8 bit Mode.

Features of Blue 1602 LCD 16x2 Character LCD Display For Arduino:

  1. 16 Characters x 2 Lines
  2. Blue Backlight
  3. 5x7 Dot Matrix Character + Cursor
  4. HD44780 Equivalent LCD Controller/driver Built-In
  5. 4-bit or 8-bit MPU Interface
  6. Standard Type
  7. Works with almost any Microcontroller

Specifications of Blue 1602 16x2 Blue Character LCD Display For Arduino:

Construction COB (Chip-on-Board) Display Format 16x2 Characters Display Type STN, Transflective, Positive Controller SPLC780D1 or equivalent controller Interface 8-bit Parallel Interface LCD Color Black Text on Green Backlight Backlight LED Viewing Direction 6 O'Clock Driving Scheme 1/16 Duty Cycle, 1/5 Bias Power Supply Voltage 5.0 V VLCD Adjustable For Best Contrast 5.0 V (Vop.) Operating Temperature -20⁰C ~ 70⁰C Storage Temperature -30⁰C ~ 80⁰C

Package includes:

  • 1x 1602 16x2 Blue Character LCD Display For Arduino
