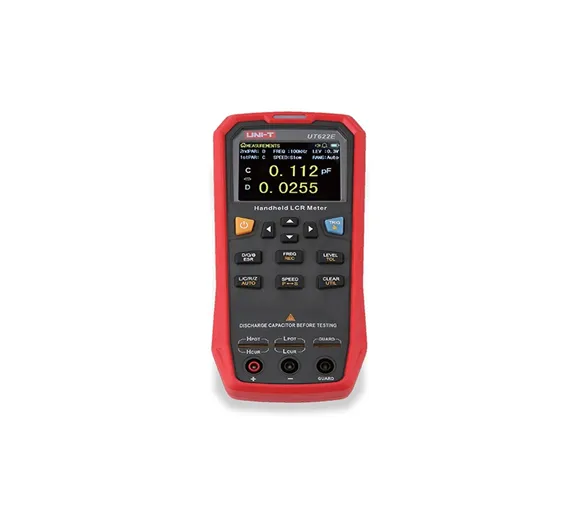

UNI-T UT622E Handheld LCR Meter
Other Meters

UNI-T UT622E Handheld LCR Meter On sale

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

UT622 series (UT622A, UT622C and UT622E) handheld LCR meters feature powerful functions, high accuracy, fast speed, and long standby time.With a clear and intuitive 2.8-inch TFT LCD display, large-capacity rechargeable battery, and up to 100kHz test frequency, the meters can be used for longstanding accurate and convenient measurement in any occasion. They are suitable for the measurement and screening of inductance, capacitance,and resistance in production lines, maintenance points,etc.

SKU: TCBOX88

Rs.55000 Rs. 68750

Applications of UNI-T UT622E Handheld LCR Meter:

Evaluation of resistance parameters of capacitors, inductors, magnetic cores, resistors, piezoelectric devices, transformers, chip components and network components, circuit boards, relays, switches, cables, batteries, etc.

Features of UNI-T UT622E Handheld LCR Meter:

  • Up to 0.1% measurement accuracy
  • High-brightness white backlight
  • Ultra-low power consumption and long battery life (8 hours)
  • Maximum test speed: 20 times/s
  • Constant 100Q output impedance
  • Data hold and recording mode
  • Standard Mini-USB interface, SCPI command set

Technical Specifications

Specifications UT622E
Certificates CE, RoHS
Test frequency 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Test signal level  0.1Vrms, 0.3Vrms, 1Vrms
Output impedance 100Ω
Measurement parameters Primary: L/C/R/Z/DCR , Secondary: D/Q/θ/ESR
Auto LCR
Test terminals Three-terminal test jacks, five-terminal test sockets
Test rate Fast (20 times/s), medium (5 times/s), or slow (2 times/s)
DCR test speed Fast (20 times/s), medium (5 times/s), or slow (2 times/s)
Ranging mode Auto/hold
Tolerance range 1%~20%
Testing circuit mode Series/parallel mode
Clearing correction Open/short circuit
Fuse of test ports 0.1A/250V
Communication interface Mini-USB
LED alarm for tolerance
 (pass: green; fail: red)
Display range
Maximum reading 99999
Minimum resolution 0.0001
Maximum accuracy 0.001
L 0.00μH~99.999H
C 0.00pF~99.999mF
Z/R 0.0000Ω~9.9999MΩ
ESR 0.0000Ω~999.99Ω
D 0.0000~9.9999
Q 0.0000~99999
θ -179.9°~179.9°
DCR 0.01mΩ--20.000MΩ
Temperature coefficient 0.1× (specified accuracy) /°C (0°C~18°C or 28°C~40°C)
General Characteristics
Power 3.7V 1800mAh lithium polymer battery; Input: 220V (1±10%), 50Hz (1±5%); Mini-USB output: 5V, 1A
Display 2.8' TFT LCD 320X240
Product net weight 420g
Product size 93mm x 192mm x 44mm
Standard accessories Short circuit board (UTR-001), USB cable, 5V 1A power adapter, Alligator clip test leads with rubber plugs (UTR-002)(UT622A), English manual
Standard individual packing Gift box
Standard quantity per carton 10pcs
Standard carton measurement 370mm × 305mm × 475mm
Standard carton gross weight 13.2kg
