UNI-T UT372D 2-in-1 Tachometer
Other Meters

UNI-T UT372D 2-in-1 Tachometer

Condition: New
Brand: UNI-T
Availability: In Stock
Share:

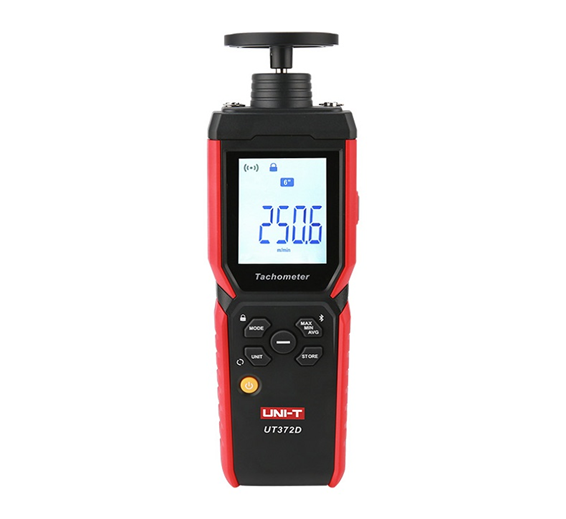

UT372D 2-in-1 Tachometer is a reliable and safe tachometer, which combines contact and non-contact measurement modes. It is mainly used to measure Revolutions Per Minute(RPM) , frequency, surface velocity and length in the fields of motors, fans, automobiles, papermaking, etc.

SKU: TCBOX87

Rs.22000 Rs. 27500

Features of UT372D 2-in-1 Tachometer

  • Contact and non-contact measurements
  • MAX/MIN/AVG/HOLD
  • Rotatable LCD backlight screen
  • Unit conversion
  • Bluetooth APP
  • Auto power off
  • Data storage
  • Two measurement buttons
  • Certificates: CE, UKCA
  • Languages: EN, FR, DE, IT, ES, SV, PL, CZ

Specifications of UT372D 2-in-1 Tachometer

Specification Range
Non-contact (optical) measurement Rotational velocity (RPM) 1-99,999
Frequency (HZ) 1-1,666
Count(REV) 1-99,999
Target distance 50~500mm
Contact measurement Rotational velocity (RPM) 1-19,999
Frequency (HZ) 1-333
Surface velocity 0.1m wheel
0.1-1,999m/min
0.4-6,550ft/min
4-78,700in/min
6”wheel
0.15-1,524m/min
0.5-5,000ft/min
6-60,000in/min
Length 0-99999(m/ft/in)
Accuracy ±0.02% ±1 digit
Measurement modes Contact RPM/Non-contact RPM/counting/frequency/Surface velocity/length
Contact measurement unit m/min, ft/min, in/min,m,ft,in
Statistical measurement Max/Min/Last reading/Average
Data storage 10 groups
Operating temperature/humidity 0°C~50°C; ≤80%RH
Storage temperature -20°C~60°C; ≤80%RH
Drop test 1m
Auto power off After about 15 minutes of inactivity
General Characteristics
Product color Red and grey
Product weight About 181g (without batteries)
Product size 176 × 63 x 38mm
Battery type AAA 1.5V ×3
Standard accessories user manual
quick start guide
safety instruction
shaft contacts(cone/internal cone)
contact wheels(6in/0.1m)
cloth bag
reflecting tape
Standard carton measurment 395mm × 330mm x 330mm
Standard quantity per carton 10pcs
