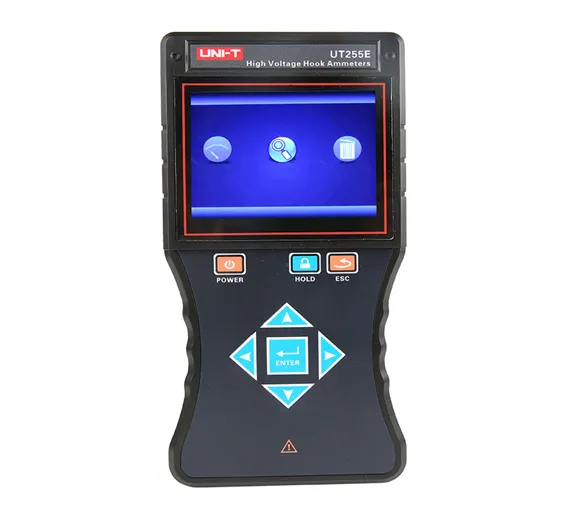

UNI-T UT255E Wireless High Low Voltage Hook Ammeter
UT255E is designed with a hook detector, wireless receiver, and telescopic insulating rod. With telescopic insulating rods connected, it can test leakage current, current, frequency, load, and others for bare conductors, bus bars below 35kV, or cables with safety insulation sheaths below 110kV.
The hook detector is equipped with the built-in double-layer flexible coil, featuring lightweight, high precision, wide range, and good linearity, it can be hung onto the line for testing, especially suitable for detecting transformer load and inspecting leakage current of multi-core thick cables underground or outdoors.
SKU: TCBOX98
Ask Price
Features of UT255E Wireless High Low Voltage Hook Ammeter
- 0～20000A AC current measurement
- Measurable busbar: Ф168mmx245mm
- Measurable wire & cable: Max. Ф168mm
- Wireless transmission distance: 150 meters
- Frequency: 45Hz～75Hz
- Data storage: 9999 set
- 3.5 inch true color LCD
- Effort-saving hook detector
- Built-in double-layer flexible coil
- Sampling rate: 2 times/sec
Technical Specifications of UT255E Wireless High Low Voltage Hook Ammeter
| Technical Specifications | |
| AC current (Auto range) |
0～99.9A;10mA ;±2%±5dgt |
| 100A～6000A; 10mA; ±3%±5dgt | |
| 6.00kA～20.0kA; 10mA; ±4%±5dgt | |
| Frequency | 45Hz～75Hz; 0.1Hz; ±1Hz (50/60Hz, auto) |
| Accuracy guaranteed temperature and humidity |
23℃±5℃, below 80%RH |
| Features | |
| Function | 1, High/low voltage leakage current, Current and frequency test; 2, Grounding current test of the iron core, transformer load; 3, Leakage current test of multicore cable. |
| Testing method | Hang the hook-type CT onto the line for testing |
| Transmission mode | 433MHz wireless transmission |
| Phase detecting distance | About 150m (Straight-line distance) |
| On-line voltage | Bare conductor: <35kV Sheath-insulated cable: <110kV |
| Large diameter hook | Measurable wire & cable.: Max. Ф168mm Measurable busbar: Ф168mmx245mm |
| Sample rate | 2 times/sec |
| Screen | 3.5 inch true color LCD; Backlight brightness adjustable |
| Position error | Area A: No position error; Area B: Increase by about 0.2%; Area C: Increase by about 2% |
| Data | 9999 set of data can be stored. |
| Press HOLD button to hold/disable data | |
| Overrange indication | “OL A” is displayed |
| No signal indication | The symbol “—-” is displayed dynamically |
| Power | Lithium battery (with USB charging port) |
| When low voltage, the low voltage symbol is displayed | |
| About 10 hours working time; | |
| Auto power off if no operation in 15 minutes. | |
| Weight | Hook detector: 496g (including battery) |
| Receiver: 395g (including battery) | |
| Insulation rod: 1.45kg | |
| Total weight: 11.5kg (including ammeter box) | |
| Dimension | Hook detector: 310 × 270 × 52mm (L*W*H) |
| Receiver: 250 × 100 × 40mm (L*W*H) | |
| Insulation rod size | Stretched length: about 5m Retracted length: about 1m |
| Operating temperature and humidity |
-10℃～40℃；below 80%Rh |
| Storage temperature and humidity |
-10℃～60℃；below 70%Rh |
| Signal Interference | No 433MHz co-channel signal interference |
| Insulation strength | Insulation rod: AC 110kV/rms |
| Detector: 2000V/rms | |
| Receiver: 2000V/rms | |
| Structural design | Anti-drip type II |
