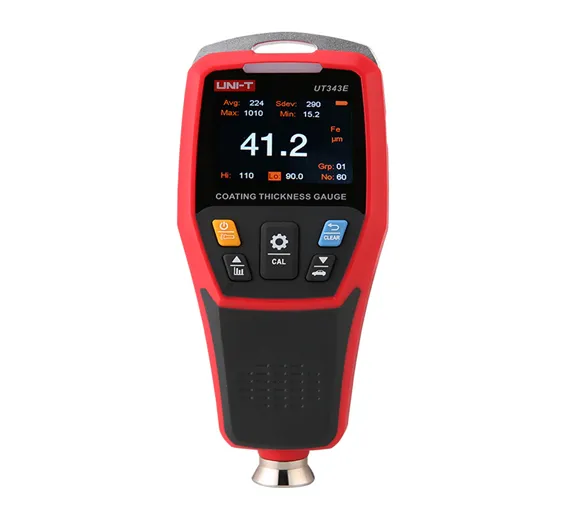

UT343E Coating Thickness Gauge Meter
UT343E coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. The measuring range is up to 2000µm, and the data can be analyzed through Bluetooth APP and PC software of mobile phones, which can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other detection areas.
SKU: TCBOX5
Ask Price
Features of UT343E Coating Thickness Gauge
- Bluetooth APP
- Conductive coating measurement (like chromium, zinc, tin)
- Voice broadcast
- Durable probe
- Automobile mode
- Multiple measurement modes
- PC software analysis
Technical Specifications of UT343E Coating Thickness Gauge
| Specification | Range | Thickness | Resolution | Accuracy |
| Certificates | CE/UKCA | |||
| Ferrous and non-ferrous substrates measurement (FE and NFE) | 0~2000μm | 0~99.9μm | 0.1μm | ±(2%H+2μm) |
| 100~2000μm | 1μm | |||
| 0~78.7mil | 0~4.99mil | 0.01mil | ±(2%H+0.08mil) | |
| 5.0~78.7mil | 0.1mil | |||
| Bluetooth and App function | √ | |||
| Probe measuring force | 0.3~1.5N | |||
| Display | 2”color TFT screen | |||
| Auto rotatable screen | √ | |||
| Unit conversion | μm/mil | |||
| LED /Audio alarm | √ | |||
| Limit setting | 0~2000μm | |||
| Measurement method | Single/continuous | |||
| Statistical measurement | Max/Min/Avg | |||
| Matrix identification modes | Auto/manual | |||
| Voice broadcast | √ | |||
| Flashlight | √ | |||
| USB communication | Upper computer communication | |||
| Data storage | 3300 data | |||
| LCD brightness control | √ | |||
| Auto power off | 5 minutes | |||
| Low battery indication | √ | |||
| Power supply | 3.7V 1300mAh Lithium battery | |||
| General Characteristics | ||||
| Power | 3.7V 1300mAh Lithium battery | |||
| LCD Size | 2 inch | |||
| Product color | Red and Gray | |||
| Product net weight | 150g | |||
| Product size | 152*65*35mm | |||
| Standard accessories | USB cable, Hand strap, Sensor protective cover, Ferrous matrix, Non-ferrous matrix, Stand coating thickness sheets（6pcs） | |||
| Standard individual packing | Gift Box,Carrying Bag,Manual | |||
| Standard quantity per carton | 10 | |||
| Standard carton measurement | 450*325*255mm | |||
| Standard carton gross weight | 5.6kg | |||
