UNI-T UT714 Multifunction Temperature Process Calibrator
Other Meters

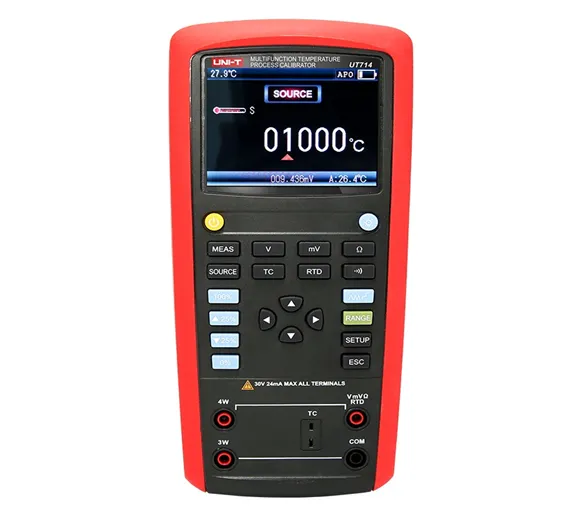

UNI-T UT714 Multifunction Temperature Process Calibrator

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

The UT714 is powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage, and resistance. It can be used to test and calibrate diffrent types of temperature instruments. This device is suitable for testing input/output temperature terminals such as sensors and transmitters.

SKU: TCBOX88

Rs.75500 Rs. 94375

Features of UNI-T UT714 Multifunction Temperature Process Calibrator:

  • Step/ramp functions
  • Source and measure accuracy up to 0.02%
  • Rechargeable battery
  • Contrast adjustment
  • Auto power off (Time adjustable)
  • Stores and recalls setups
  • USB communication

Technical Specifications

Type Range Accuracy
Certificates CE, RoHS
Measurement
DC voltage (V) 50mV/500mV/30V ±(0.02%+2)
Resistance (Ω) 500Ω/5000Ω ±(0.05%+10)
Thermocouples R,S,K,E,J,T,N,B,L,U
RTDs Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120
Continuity test
Source
DC voltage (V) 100mV/1000mV/10V ±(0.02%+10)
Resistance (Ω) 400Ω/4000Ω ±(0.05%+10)
Thermocouples R,S,K,E,J,T,N,B,L,U
RTDs Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120
Display count 20000
Operating temperature  -10°C~55°C
General Characterisitics
Power 1.2V x 6 AA rechargeable battery
Product net weight 650g
Product size 195mm x 95mm x 58mm
Standard accessory Test lead, USB cable, power adapter, temperature probe, English manual
