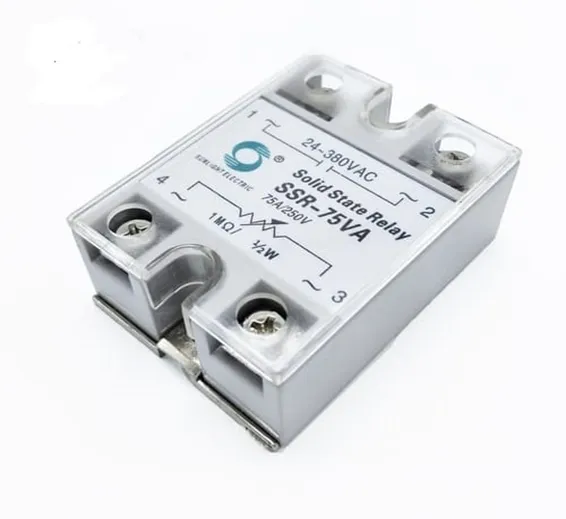

Solid State Relay SSR 75VA

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: TMD10,Th5,KRT

Rs.1050 Rs. 1313

75A SSR Solid State Relay is an electronic switching device, that switches on or off when a small external voltage is applied across its control terminals. Solid State Relay 75A consists of a sensor which response to an appropriate input (control signal). Solid State Relay 75A which switches power to the load circuitry, and a coupling mechanism to enable the control signal to activate this switch without mechanical parts.

Features:

  1. Special general circuit design for large current, high-quality circuit board
  2. Use copper terminals for big current, increase the safety of connection and use
  3.  Use a pure aluminum base plate, with better performance and long life.
  4. Hign-end flame-retardant PV plastic, thermostability can up to 70-80 degrees.
  5. Protective cover for greater safety.

Specifications:

Model

SSR-75VA

Load current

75A

Load voltage 24-380VAC
Control voltage 1MO 1/2W / 220V AC
On state leakage current =2mA
Off-state time =10mS
Dielectric strength 2500VAC
Ambient temperature -30°c ~ 75°c
Mounting method Bolting
Indicator LED
Weight 135g
Rated input control voltage Variable resistor
Input resistance 470KO 2W potentiometer
Wattage of VR 1/4 W min
Pick-up or drop-out time 10ms max
Control type Phase control
Insulation resistance 1000MO500VDC
On-state leakage current 2mA max
On-state voltage drop at Imax 1.5Vac
Matched heat sink =40A: FHSI01-50, =60A: FHSI02-50, =120A: FHSI03-100
Matched thermal grease HZ-KS101
Dielectric strength 2500VAC 50/60Hz for 1 minute
Insulation resistance 500 MO min at 500 VDC
External dimensions 62x45x23.5mm
Terminals Screw
Operational temperature -30 to 75?
Operational humidity 95% max no condensation

Applications

  1. Universal switch and thermal control
  2. Industrial automatic control
  3. Numerical-controlled machinery,
  4. remote-control system

Buy  Solid State Relay SSR 75A OMRON at Pakistan Best Online Store at cheap price. Here you get the best SSR relays. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all Over Pakistan.

Package Includes:

  • 1 x SSR-75VA solid state relay
