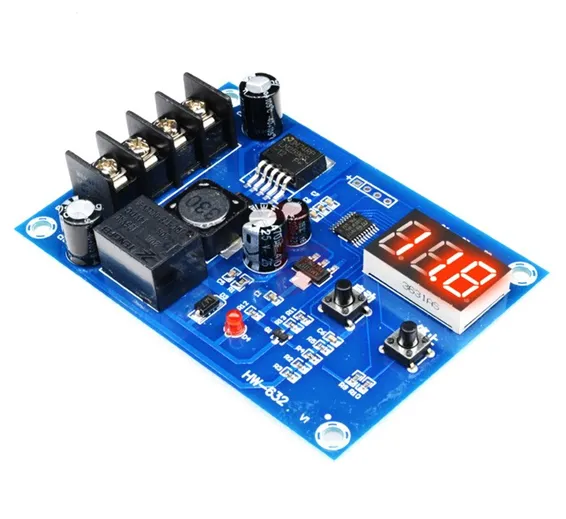

Xh-M603 Dc 12v-24v Voltage Charging Discharge Monitor Relay Switch Battery Protection Module

Product Introduction:

1. Model:XH-M603
2. Input Voltage:DC 10-30V
3. Display Precision:0.1V
4. Control Precision:0.1V
5. Output Type:direct output
6. Voltage Tolerance:+/-0.1V
7. Application Fields:12-24V storage battery
8. Size;82*58*18mm

Using Method:

1. Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash you can start or stop button to set starting up charge voltage value.
2. Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value.
3. Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings.

Package include :

1X XH-M603 battery lithium battery charging control module
