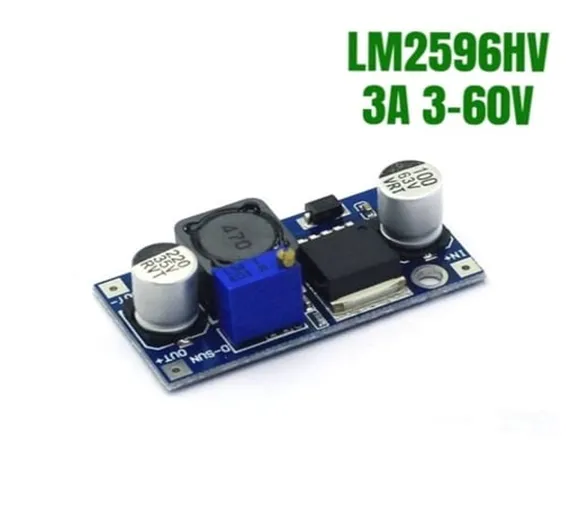

LM2596HV Adjustable Step Down DC To DC Buck Converter In Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B 129 , D 115,IMP50,Th10,KRT120,N86

Rs.150 Rs. 188

his is an LM2576HV(High Voltage Input/Output up to 40V) DC-DC buck converter step-down power module with a high-precision potentiometer for adjusting the output voltage, capable of driving a load up to 3A with high efficiency. When the output current required is greater than 2.5A(10W) an external heatsink is suggested.

Specifications:

  1. Non-isolated constant voltage module
  2. Rectification: non-synchronous rectification
  3. Input voltage: 4.5V-40V
  4. Output Voltage(Less than input): 1.3V-30V
  5. Output current: 3A maximum
  6. Conversion efficiency: 92% (maximum)
  7. Switching frequency: 52KHz
  8. Output ripple: 50mV (maximum) 20M-bandwidth
  9. Load regulation: ± 0.5%
  10. Voltage regulation: ± 2.5%
  11. Operating temperature: -40 ℃ to +85 ℃

Package Include:

  1. 1 X DC-DC Step Down Buck Module Lm2596HV
