DVD Mini Tray Spindle Motor 5.9V DC RF-300F-12350
DC Motor

DVD Mini Tray Spindle Motor 5.9V DC RF-300F-12350

Condition: 10/10
Availability: In Stock
Advance Payment Only
Share:

SKU: b43

Rs.200 Rs. 250

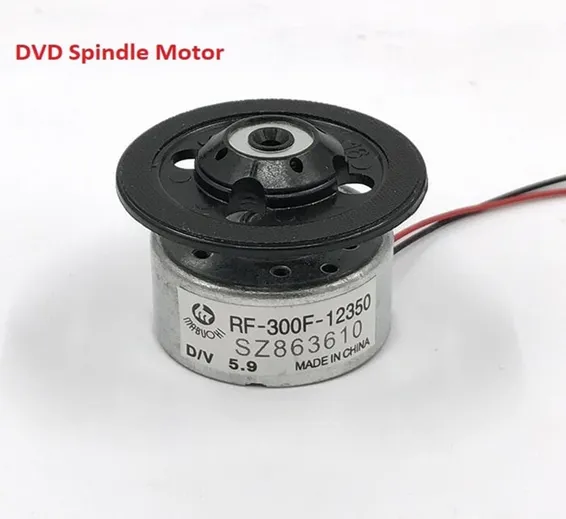

This is a DVD/CD Spindle Motor, that thing that's inside a CD or DVD player, that turns the disc around really fast. These motors have some great benefits that make them easier to use than '130' style DC hobby motors. For one, they're mostly flat on the end, so you can tape or glue it to a flat surface easily. DVD Motor with Tray is well balanced, don't vibrate a lot which makes them nice and quiet compared to most other motors (they're not totally silent). CD VCR Replacement Motor can spin fast, about 3500 RPM at full power.

  • The motor is rated at 5.9V max
  • . You can use 3V to 6V DC, the speed and torque may vary
  • They've already got a plastic hub on em
  • , so it's super easy to attach whatever you like.

    Features Of Replacement DVD Player RF-300F-12350 Spindle Motor:

    • The motor is rated at 5.9V max
    • It Doesn't Vibrate a lot
    • It is well balanced
    • It can spin fast about 3500 RPM at full power
    • They've already got a plastic hub on em
    • Easy to attach
    • Mostly flat from the end so you can tape or glue it

    Specifications Of DVD/CD/VCR 5.9V Dc Spindle Motor with Mini Tray :

    1. Power Source: Dc
    2. Current Type: DC
    3. Operating Voltage Range: 1.5v-6.0V
    4. Nominal Rated input Voltage: 3v-5.9V const.
    5. Output Power: 0.02W-1.8W
    6. No-load speed: 3500r/min
    7. Max Load speed: 2830r/min
    8. No-load Current: 0.022A
    9. Load Current: 0.093A
    10. Shaft type: straight
    11. Shaft Diameter: 2.0m

    Package Include:

    • 1x DVD Motor
