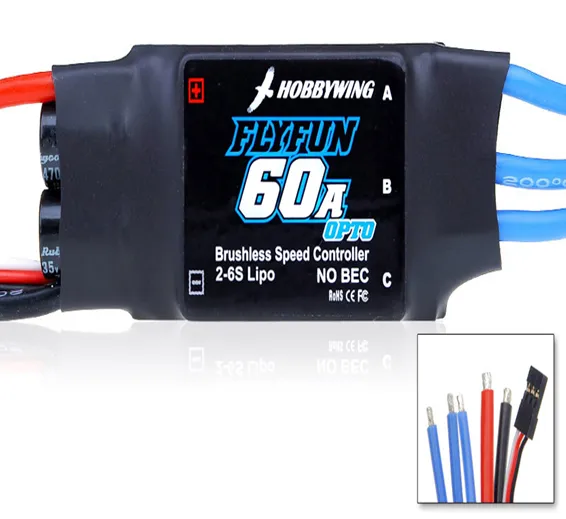

HobbyWing Flyfun ESC 60A Airplane & Helicopter

Condition: 10/10
Availability: In Stock
Share:     Faceook Twitter

SKU: B 235,,D46,IMP20,Th10,KRT,N122

Rs.2500 Rs. 3125

Part # FlyFun-60A has built-in 5-Volt 3-Amp BEC*

Part # FlyFun-60A-OPTO does not have a built in BEC* an external power source for your receiver will be required

BEC = Battery Eliminator Circuit

1? Specification

1.1 Output:? Continuous 60A, Burst 80A up to 10 seconds.
1.2 Input Voltage:? 2-6 cells lithium battery or 5-18 cells NiCd/NiMh battery.???
1.3 BEC:??
FlyFun-60A: 3A / 5V switching mode BEC.
FlyFun-60A-OPTO: None.
1.4 Refresh rate of the throttle signal: 50Hz to 432Hz.
1.5?Max Speed:? 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
1.6 Size:??
FlyFun-60A:?83mm*31mm*16mm.
FlyFun-60A-OPTO: 83mm*31mm*14mm..
1.7 Weight:??
FlyFun-60A:?63g.
FlyFun-60A-OPTO: 60.2g.


Documentation:
https://p11.secure.hostingprod.com/@hobbypartz.com/ssl/ibuyrc/manual/07E-FLYFUN.pdf
