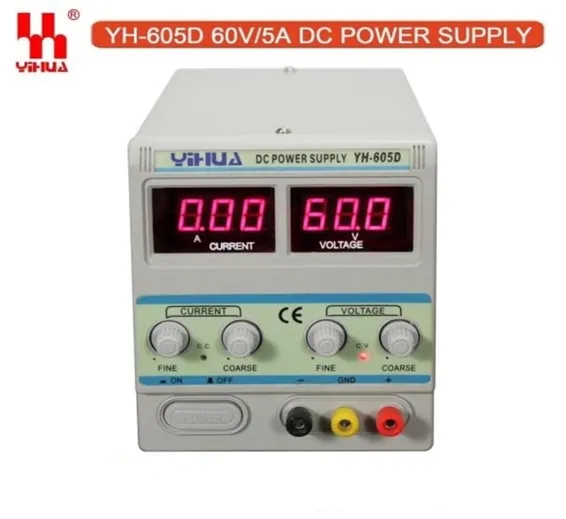

YIHUA DC Power Supply YH605D is a single line output of stabilized high accuracy DC stabilized power supply. YH-605D 60V 5A digital precision DC power supply, the output voltage and current can be adjusted continuously within the rated range. This dc voltage supply has a double digital display which shows the output voltage and current independently. This adjustable power supply has several protection functions include current limitation, voltage reduction, short circuit protection, over-temperature protection, etc. YH-605D best high voltage power supply, the design is applied to the production line of the plant, maintenance, laboratories and is also a necessary device for the communication industry.
Features Of YIHUA YH 605D DC Power Supply:
- Adjustable 0 ~ 60V / 0 ~ 5A.
- Using laptop repair, mobile phone and so on.
- LED shows the temperature accuracy.
- Handle in the picture is NOT included this time. With Dual LED 3-digit Displays.
- Designed for electronics product development and production, laboratory and university researches and mobile computer repair, etc.
- This DC Power Supply features a very high quality continuously variable voltage 0-60V.
- Input power: AC 110V, 50Hz/60Hz.
Specifications Of YIHUA Best DC Power Supply 60V 5A YH-605D:
- The input power supply: we can do 110V, 220V, 230V, 240V AC
- Output voltage: 0-60 V DC
- Work temperature: -10oC-40oC
- Empty carry to the exhaust: <0.25 W
- Output Voltage: 0-60 V (Adjustable)
- Output Current: 0-5A (Adjustable)
- Working Conditions Temperature: -10-40Degrees Celsius Relative Humidity: 90%
- Storage Conditions Temperature: -10-40Degrees Celsius Relative Humidity: 80%
- Voltage Stability Constant Voltage Operation: ≤ 01% mv
- Load stability: ≤ 01% mv
- Recovery time: ≤ 100us
- Curly and noise: ≤ $ terms (effective value)
- Temperature coefficient: ≤ 200PPM / ° C
- Constant Current stability operation: ≤ 1% ma
- Load stability: ≤ 2% ma
- Curly and noise: ≤ 2marms (effective value)
- Precision Voltage 3-digit LED display: ± 1% ± 1 word
- Current 3-digit LED Precision Screen: ± 1% ± 1 word
- Dimensions: 255 × 130 × 150 (mm)
- Weight: 5.8Kg.
Package Includes:
- 1x YH-605D DC Power Supply
- 2 x Test cables
- 1 x Power cord
- 1 x User's manual
