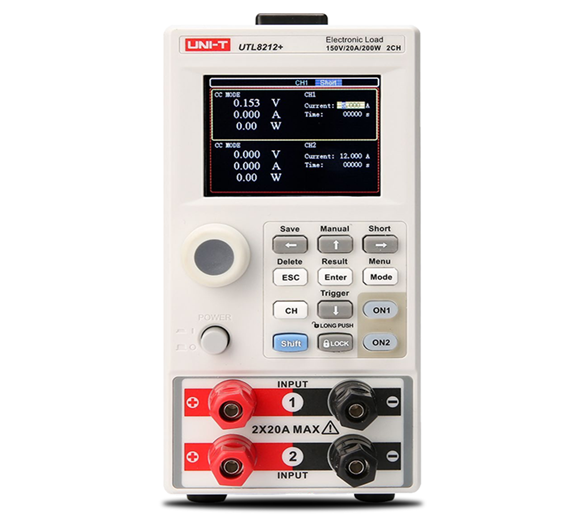

UNI-T UTL8212+ Programmable High-Precision Compact DC Electronic Load Tester
UTL8200+ series electronic load is equipped with a 2.8-inch LCD display, which is easy to operate and stylish in appearance. Its test resolution is up to 1mV/1mA. Equipped with rich test functions and modes for you to choose. The equipment is equipped with RS232 communication module, which can flexibly meet various on-site test conditions, and is convenient for seamless connection with automated production lines and automatic test systems. The electronic load operates stably and has a wide range of applications, adapting to various testing requirements.
SKU: TCBOX65
Ask Price
Specifications of UNI-T UTL8212+ Electronic Load Tester
- Voltage: 150V
- Current: 20A
- Total Power: 2X200W
- Resolution: 1mV/1mA
- Max. Dynamic Frequency: 5kHz
- Current Slew Rate: 0.04A/mS~0.2A/μS
- Size: ¼ 4U
- Connectivity: RS232,optional RS485
Features of UNI-T UTL8212+ Electronic Load Tester
- 7 test modes to help you complete the test work better
- Multiple protection functions and flexible adjustment
- 2.8inch LCD display, clearly displaying more information
- CC,CR,CP Multi-mode battery discharge test
- List mode to help you automate (Combining automatic unloading and self-starting voltage to effectively improve test efficiency)
- Standard 232 ports, optional 485 ports. Support SCPI protocol, providing a more convenient choice for remote control
- Dynamic load is up to 5kHz
| Model | Voltage | Current | Total Power | Resolution | Max Dynamic Frequency | Current Slew Rate | Size | Connectivity |
| UTL8212+ | 150V | 20A | 2X200W | 1mV/1mA | 5kHz | 0.04A/mS~0.2A/μS | ¼ 4U | RS232,optional RS485 |
| UTL8211+ | 150V | 40A | 400W | 1mV/1mA | 5kHz | 0.08A/mS~0.4A/μS | ¼ 4U | RS232,optional RS485 |
