Power Supply

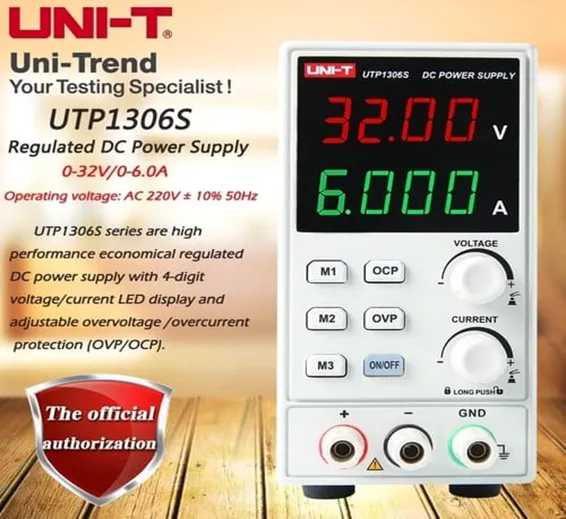

UNI T Adjustable Digital DC Power Supply UTP1306S 32V 6A Single Channel 4Bits 220V Input OVP Mobile Phone Repair Supply

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: R1306SB61

Rs.35000 Rs. 43750

Adjustable DC Power Supply UTP1306S is high performance economical regulated DC power supply with 4-digit voltage/current LED display of voltage and current, high precision with single channel output. Independent output switch and the operation keys can be locked. Regulated DC Power Supply Can set overcurrent / overvoltage protection value (OVP/OCP). UNI-T DC Stablized has designed with high stability and reliability, UTP1306S series are ideal tools for students, enterprise production lines, appliance repair, etc.

Features Of Digital Adjustable DC Power Supply 0-32V 0-6A Regulated Laboratory Switching Power Supply:

  • Mini but professional switching DC power supply with 0~32V/0~6A range and 10mV/1mA resolution.
  • Over voltage protection(OVP), over current protection(OCP) with setting function and over temperature protection.
  • Voltage stabilization, current limiting, simple operation feature the DC power supply.
  • With replaceable fuse, convenient to change the protective tube.
  • Double LED 4 digits display of voltage and current, high precision with single channel output.
  • Independent output switch and the operation keys can be locked.
  • Applied in production line test, electrical maintenance, aging products, battery charging, laboratories scientific research and teaching and all other need DC regulated power supply.

Specifications Of 0-6A/0-32V Single Output Switching DC Power Supply:

  1. Model:UTP1306S
  2. Input voltage:220V(can shift)±10% (No AC 110V ,please make notice)
  3. Output voltage:0 ~ 32V
  4. Output current:0 ~ 6A
  5. Output Power: 192W
  6. Load regulation rate voltage:<0.5%+10mV
  7. Load regulation rate current:<0.5%+3mA
  8. Power regulation rate voltage:<0.3%+5mV
  9. Power regulation rate current:<0.5%+3mA
  10. Set resolution voltage:10mV
  11. Set resolution voltage current:1mA
  12. Readback resolution voltage:10mV
  13. Readback resolution current:1mA
  14. Setting accuracy current:<0.5%+3mA
  15. Ripple and noise voltage:10mVrms
  16. Ripple and noise current:5mArms
  17. OVP:0-32V±0.2%FS
  18. OCP:0-6A±0.2%FS
  19. Operating environment:0-40°,<80%RH
  20. Storage environment:-15-70°,<80%RH
  21. Size:230 x 79 x 150mm

Package Include:

  • 1 x Regulated DC Power Supply UTP1306S
