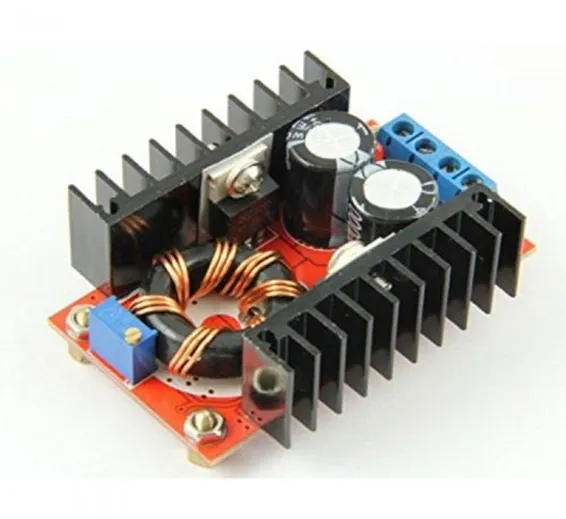

150w DC To DC Boost Converter 10 32v To 12 35v 6a Step Up Power Supply Module
Power Supply

150w DC To DC Boost Converter 10 32v To 12 35v 6a Step Up Power Supply Module

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: B230,D108,IMP20,Th10,KRT115,519,N90

Rs.650 Rs. 813

Features:

  • Module Properties: non-isolated step-up module (BOOST)
  • Input voltage :10-32V
  • Output voltage: 12-35V (adjustable)
  • Output Current: 10A (MAX)
  • Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
  • Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
  • Easy to drive 65W/90W dual-core notebook.
  • Use a 12V battery drive 19V, 3.42A notebook, the module temperature about 45°c
  • Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
  • Output Ripple: 2% (MAX) 20M-bandwidth
  • Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
  • Full load temperature rise: 45°c
  • No-load current: 25mA typical
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Short circuit protection: None (Please Install fuses and protection circuits at Input port)
  • Input Reverse Polarity Protection: None (Please Series diode at the input port)
Some Applications:
  • DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V (adjustable freely), However, the output voltage can not be less than the input voltage.
  • Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
  • Boost charger. You can use the 12V power supply to charge battery more than 12V, for example, 24V battery
Package included:

1 x 150W DC-DC Boost Converter 10-32V to 12-35V 6A Step-Up Adjustable Power Supply
