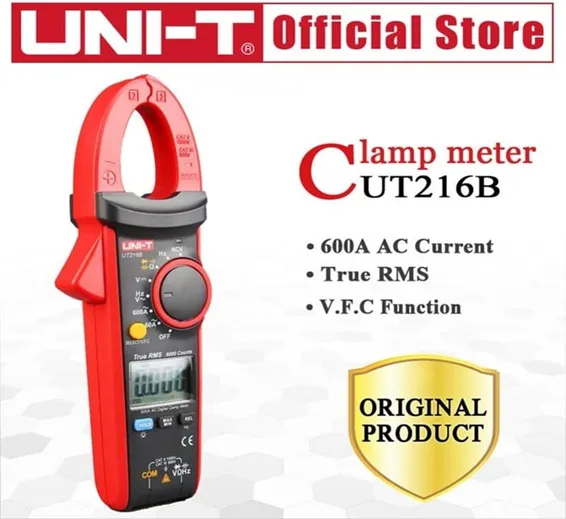

UNI T UT216B True RMS Digital Clamp Meter 600A
Clamp Meters

UNI T UT216B True RMS Digital Clamp Meter 600A

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only

UT216 series digital clamp meters are designed for measuring high frequency currents (up to 400Hz) in server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip and enhanced durability. UT216’s 6000 count display also provides more precise readings for users.

Models in UT216 series: UT216AUT216BUT216CUT216D


Ask Price

UT216 series Digital clamp meters are designed for measuring high-frequency currents (up to 400Hz) in railways and aerospace, server rooms, IT systems, etc. True RMS Clamp Tester's double injection design gives users a more comfortable grip and enhanced durability. Produced by UNI-T. Handheld Clamp tester UT216B has full-range overload protection and unique appearance design is more excellent in performance.UNI-T ut216b Tong tester is an ideal tool for the detection, maintenance, and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, national defense, electrical, power, and circuit equipment.

Features Of Portable Handheld Digital Electrical Clamp Meter UT216B:

  • True RMS
  • Auto range, 3/s sampling rate
  • MAX/MIN/Relative modes
  • Flashlight
  • Data hold, LCD backlight, auto power-off
  • 400Hz measurement
  • NCV, non-contact AC voltage testing
  • VFC, low pass filter

Specifications Of UNI-T UT216B AC/DC Current Auto Range Clamp Tester:

Specifications Range UT216A UT216B UT216C UT216D
AC current (A) 600A ±(2.5%+5) ±(2.5%+5) ±(2.5%+5) ±(2.5%+5)
AC current frequency response   50/60Hz 40~400Hz 40~400Hz 40~400Hz
DC current (A) 600A     ±(2.5%+5) ±(2.5%+5)
AC voltage (V) 750V ±(1.2%+5) ±(1.2%+5) ±(1.2%+5) ±(1.2%+5)
AC voltage frequency response   40~400Hz 40~400Hz 40~400Hz 45~400Hz
DC voltage (V) 1000V ±(0.8%+1) ±(0.8%+1) ±(0.8%+1) ±(0.8%+1)
Resistance (Ω) 60MΩ ±(1%+2) ±(1%+2) ±(1%+2) ±(1%+2)
Capacitance (F) 60mF ±(4%+5) ±(4%+5) ±(4%+5) ±(4%+5)
Frequency (Hz) 10Hz~1MHz   ±(0.1%+4) ±(0.1%+4) ±(0.1%+4)
Temperature -40°C~1000°C     ±(2%+5) ±(2.5%+3)
-40°F~1832°F     ±(2%+10) ±(2.5%+6)
Display count   6000 6000 6000 6000
Auto range
Jaw opening   30mm 30mm 30mm 30mm
True RMS
Diode Around 3.0V
Data hold
Relative mode
LCD backlight
Inrush current
OLED display
Analog bar graph       61 21
Auto power off
Continuity buzzer
Low battery indication ≤3.6V
Input protection
Input impedance for DCV ≥10MΩ
General Characteristics
Power 1.5V battery (R03) x 3
Display 38mm x 24mm
Product color Red and grey
Product net weight UT216A: 280g; UT216B/C/D: 231.7g
Product size 220mm x 75mm x 40mm
Standard accessories Batteries, test leads, point contact temperature probe (UT216C/UT216D)
Standard individual packing Gift box, carrying bag, English manual
Standard quantity per carton 40pcs
Standard carton measurement 485mm x 345mm x 385mm
Standard carton gross weight UT216A: 20.6kg; UT216B: 19.3kg; UT216C: 20.1kg; UT216D: 20.3kg

Package includes:

  • 1x Clamp Meter UNI T UT216B
