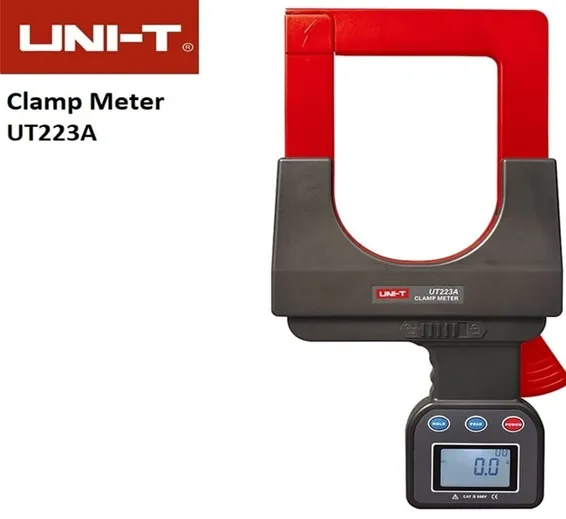

UNI-T UT223A AC Clamp Multimeter 4000A
Clamp Meters

UNI-T UT223A AC Clamp Multimeter 4000A

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

SKU: TMD1,Th6,KRT

Ask Price

UT223A is designed for testing large AC current up to 4000A with a resolution of 0.1A. Ac Clamp Ampere Meter is designed with anti-interference mechanisms that improve measurement results around areas with electromagnetic interference UNI-T UT223A Large diameter Clamp meter ammeters are well designed and manufactured to measure AC leakage current, voltage, adopt the latest CT technology and digital integrated technology.AC Large Claw Meter's large-caliber 108mm×148mm can clamp electric. Digital Electrical Clamp 4000A is an ideal tool for maintaining and troubleshooting metallurgy, manufacturing, petroleum, electric power, and chemical industry. This Handheld Tong Tester UT223A meter is very useful. Light in weight and size. UNI-T UT223A is now also available in Pakistan.

Features Of UNI-T UT223A Large Claw Clamp Multitester:

  • Large 108×148mm jaw, equipped with a locking bolt
  • 4 Digits LCD display
  • Auto range, 2/s sampling rate
  • Peak test
  • Manual range/99 sets storage data
  • RS232 interface
  • Data hold
  • Auto power off
  • Overload protection, low battery indication

Specifications Of Handheld Portable Digital AC Tong Tester UT223A:

  1. Power: 6V DC (LR6×4 Alkaline Batteries)
  2. LCD Display: 47mm×28.5mm
  3. Dimension: 350mm×180mm×55mm
  4. Color: Red and Grey
  5. Jaw Dimension: 108mm×148mm
  6. Ac Current : 0.A~4000A
  7. AC Current Range and Accuracy:
    • 0.0mA~499A ±(2%+5)
    • 500A~999A ±(3%+5)
    • 1000A~2999A ±(4%+5)
    • 3000A~4000A ±(5%+5)

Package includes:

  • 1x UNI-T UT223A Clamp Multi Meter

Best Online Shopping website for Modern Digital portable AC Clamp MultiMeter 4000A UNI T UT223A Large Jaw tong tester meter Ac Ammeter Clamp meter in cheap price in Karachi Lahore Islamabad Rawalpindi Sukkur Peshawar Multan Quetta Faisalabad and all over Pakistan
