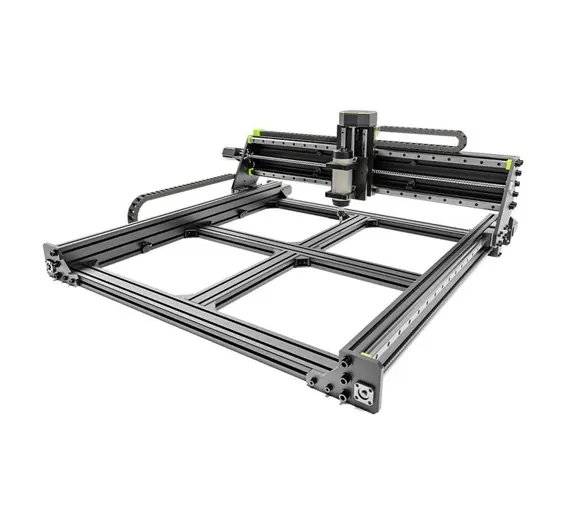

Rat Rig StrongHold PRO CNC Machine – Custom Built Heavy Duty CNC Router (1000x1000, 1000x1500, 1500x1500) (Made On Order)
- Heavy-Duty Structural Rigidity: Built with industrial-grade C-Beam aluminum extrusions and precision linear guides to ensure zero gantry flex and maximum cutting stability.
- Wide Material Compatibility: Engineered for high-precision milling, carving, and cutting of hardwoods, MDF, acrylic, plastics, and non-ferrous metals like aluminum and brass.
- Three Flexible Size Variants: Available in 1000x1000mm, 1000x1500mm, and 1500x1500mm working areas to perfectly match your workshop space and production needs.
- Made-to-Order Assembly: Custom built at Rawlix with complete mechanical assembly, dual Y-axis drive alignment, clean cable drag-chain routing, and full factory calibration.
- Tailored Electronics Setup: Fully customizable with standard router mounts or 1.5kW/2.2kW water-cooled spindles, high-torque NEMA 23/34 stepper motors, and advanced CNC controllers.
SKU: RLX-RAT-RIG
Ask Price
Size
Size
Rat Rig StrongHold PRO CNC Machine – Ultimate Rigidity & High-Precision Milling
The Rat Rig StrongHold PRO is designed for makers, engineers, sign-makers, and industrial workshops requiring maximum structural rigidity, speed, and accuracy. Built on an advanced structural framework, the StrongHold PRO eliminates gantry flex and backlash, allowing you to mill heavy hardwoods, plastics, acrylics, and non-ferrous metals like aluminum with tight tolerances.
At Rawlix, we manufacture and assemble the StrongHold PRO on a Made-to-Order basis. Each machine undergoes rigorous mechanical assembly, precision alignment, wiring, and calibration by our engineering team in Pakistan to ensure plug-and-play reliability for your workflow.
1. Size Variants & Complete Dimensional Specifications
Choose the exact working footprint required for your workshop. All three variants share the same ultra-rigid gantry design, varying only in structural frame length and travel capacity:
Variant A: 1000mm x 1000mm (Compact Powerhouse)
- Outer Frame Dimensions: ~1250mm x 1250mm
- Effective Cutting Travel (X / Y / Z): ~800mm x 800mm x 95mm
- Best Suited For: Small engineering workshops, PCB isolation milling, custom enclosures, small signage, instrument parts, and rapid prototyping.
- Workspace Footprint: Ideal for compact work benches and limited workshop space.
Variant B: 1000mm x 1500mm (Extended Production Format)
- Outer Frame Dimensions: ~1250mm x 1750mm
- Effective Cutting Travel (X / Y / Z): ~800mm x 1300mm x 95mm
- Best Suited For: Furniture components, medium-sized sign boards, long stock material cutting, and commercial sheet batch production.
- Workspace Footprint: Provides extended Y-axis travel without occupying full square room width.
Variant C: 1500mm x 1500mm (Full-Format Industrial Workhorse)
- Outer Frame Dimensions: ~1750mm x 1750mm
- Effective Cutting Travel (X / Y / Z): ~1300mm x 1300mm x 95mm
- Best Suited For: Full half-sheet wood cutting, large architectural models, commercial 3D carving, large aluminum panel routing, and heavy production runs.
- Workspace Footprint: Large-format standalone CNC workstation requiring dedicated floor space.
2. Bill of Materials (BOM) & Components Included
When you order a complete StrongHold PRO build from Rawlix, your machine is equipped with industrial-grade mechanical and electronic hardware:
A. Frame & Mechanical Structure
- Extrusions: Heavy-duty C-Beam and 2080 / 4080 structural anodized aluminum extrusions for maximum torsional stiffness.
- Gantry Plates: Thick CNC-machined structural aluminum plates (6mm–10mm precision anodized plates).
- Linear Motion Guides: High-precision HGR15 / HGR20 linear guide rails with bearing blocks for smooth, zero-play motion under heavy loads.
- Drive Mechanism: Precision ACME Lead Screws / Ball Screws with anti-backlash nut blocks on all axes.
- Dual Y-Axis Drive: Independent dual-motor drive system on the Y-axis to prevent gantry racking.
B. Motion Control & Electronics
- Stepper Motors: High-torque NEMA 23 Stepper Motors (Optional NEMA 34 upgrades for heavy milling).
- Stepper Drivers: Industrial Digital Stepper Drivers (e.g., DM556 / TB6600 high-voltage drivers) for silent operation and smooth micro-stepping.
- Control Board: CNC Controller (GRBL 32-bit / Mach3 / NVEM / Offline Controller compatible).
- Power Supply: Industrial 24V / 36V / 48V Switching Power Supply Unit (PSU) with short-circuit protection.
- Cable Management: Drag chain (cable carrier) systems installed on X and Y axes for clean, tangle-free wiring.
C. Spindle & Cutting Options (Customizable)
- Standard Router Mount: Compatible with Makita RT0700C / Dewalt routers.
- Industrial Spindle Upgrade: 1.5kW or 2.2kW Air-Cooled / Water-Cooled Spindle with matching Variable Frequency Drive (VFD).
3. Material Compatibility
The Rat Rig StrongHold PRO is engineered to cut, carve, drill, and engrave a wide range of materials:
- Wood & Timber: Hardwood, Softwood, MDF, Plywood, Teak, Walnut.
- Plastics & Composites: Acrylic, HDPE, Polycarbonate, PVC, Carbon Fiber, Bakelite.
- Non-Ferrous Metals: Aluminum (6061/7075), Brass, Copper (with appropriate coolant/lubrication and feed settings).
- Prototyping Materials: Machinable wax, modeling foam, PCB boards.
4. Made-to-Order Manufacturing & Delivery Process
Order-to-Build Workflow:
- Order Confirmation & Terms: Select your desired size variant. A 50% advance payment is required to begin production, with the remaining 50% balance due upon build completion prior to dispatch.
- Manufacturing & Assembly Timeline: Complete frame assembly, gantry squaring, linear rail installation, and cable routing take approximately 45 days to manufacture.
- Testing & Calibration: Every machine undergoes rigorous test cuts, Z-probe calibration, and axis movement verification before final packaging.
- Shipping & After-Sales Support: Securely packaged and shipped across Pakistan (delivery charges are not included and will be billed separately). After-sales technical support and servicing are available upon request (servicing charges apply).
