Clamp Meters

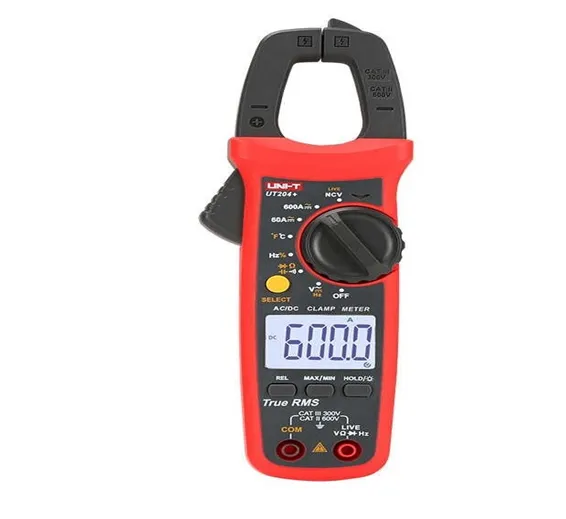

UNI-T UT204+ Digital AC DC Current Clamp Meter Multimeter

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: RAWLIXUNI

Rs.4950 Rs. 6188

UNI-T UT204+ Digital AC DC Current Clamp Meter Multimeter measure current. Probes measure voltage. Digital AC DC Current Clamp Meter Multimeter, having a hinged jaw integrated into an electrical meter allows technicians to clamp the jaws around a wire, cable or other conductors at any point in an electrical system, then measure current in that circuit without disconnecting/de-energizing it.

Features of UNI-T UT204+ Digital AC DC Current Clamp Meter Multimeter:

  • The large-screen LCD display, fast ADC / analogue to digital converter
  • Full-featured false detection protection, overvoltage, overcurrent alarm prompt
  • True RMS; voltage measurement 600V
  • NCV electric field detection with sound and light alarm prompt; LIVE live-line measurement
  • With high voltage frequency measurement
  • Full range overload protection
  • Automatic range, digital hold
  • Lightweight and small design, easy to carry
  • Open clamp head for easy clamping
  • Range gear, knob dial
  • Test pen input, jack measurement
  • Intelligent anti-burn protection

Specifications of UNI-T UT204+ Digital AC DC Current Clamp Meter Multimeter:

Specifications

Range

UT201+

UT202+

UT202A+

UT203+

UT204+

AC current (A)

400A

±(2%+10)

±(2%+10)



±(2.5%+5)



600A





±(2%+10)



±(2.5%+5)

AC current frequency (Hz)

50Hz~100Hz

±(1%+5)

±(1%+5)

±(1%+5)





DC current (A)

400A







±(2.5%+5)



600A









±(2.5%+5)

AC voltage (V)

600V

±(0.8%+5)

±(0.8%+5)

±(0.8%+5)

±(0.8%+5)

±(0.8%+5)

AC voltage frequency(Hz)

10Hz~10kHz

±(1%+5)

±(1%+5)

±(1%+5)





10Hz~60kHz







±(0.5%+2)

±(0.5%+2)

DC voltage (A)

600V

±(0.5%+2)

±(0.5%+2)

±(0.5%+2)

±(0.5%+2)

±(0.5%+2)

Resistance (O)

40MO

±(0.8%+2)

±(0.8%+2)



±(0.8%+2)



60MO





±(0.8%+2)



±(0.8%+2)

Capacitance (F)

4mF



±(4%+5)







40mF







±(4%+5)



60mF





±(4%+5)



±(4%+5)

Temperature (?)

-40?~1000?



±(1.5%+5)





±(1.5%+5)

Frequency (Hz)

10Hz~10MHz





±(0.1%+4)

±(0.1%+4)

±(0.1%+4)

Features

Display count



4000

4000

6000

4000

6000

Auto range



v

v

v

v

v

Jaw opening



28mm

28mm

28mm

28mm

28mm

True RMS



v

v

v

v

v

NCV



v

v

v

v

v

Live wire test







v



v

Continuity test



v

v

v

v

v

Diode



v

v

v

v

v

MAX/MIN



v

v

v

v

v

Relative mode





v

v

v

v

Zero mode









v

v

Data hold



v

v

v

v

v

Low battery indication



v

v

v

v

v

Auto power off



v

v

v

v

v

Device Characteristics

Power

1.5V battery (R03) x 2 (Battery Not Include)

Display

37mm x 25mm

Product colour

Red and grey

Product net weight

UT201+/UT202+/UT202A+:248g; UT203+/UT204+:235g

Product size

215mm x 63mm x 36mm

Standard accessories

Batteries, test leads, Thermocouple (UT202+/UT204+)

Package Includes:

  • 1 x UNI-T UT204+ Digital AC DC Current Clamp Meter Multimeter
