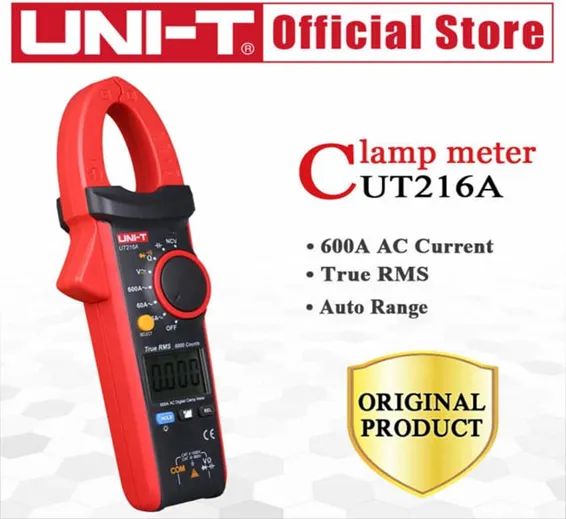

UNI T UT216A True RMS Digital Clamp Meter 600A
UT216 series digital clamp meters are designed for measuring high frequency currents (up to 400Hz) in server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip and enhanced durability. UT216’s 6000 count display also provides more precise readings for users.
Models in UT216 series: UT216A, UT216B, UT216C, UT216D
SKU: TMD1,Th6,KRT
UT216 series True RMS digital clamp meter is a new-generation practical electrotechnical measurement meter which has the features of high reliability, high safety, automatic range, and handheld type. Handheld Clamp tester UT216A has full-range overload protection and unique appearance design is more excellent in performance.UNI-T ut216a Tong tester is an ideal tool for the detection, maintenance, and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, national defense, electrical, power, and circuit equipment.
Features Of Handheld Modern Auto-range Clamp Multitester UT216A:
- True RMS Auto Range Digital Clamp Meter
- It has a Display Count of 6000
- Auto range, 3 times/s sampling rate
- MAX/MIN/Relative modes
- Flashlight
- 99.99mF capacitance measurement
- NCV, non-contact AC voltage testing
Specifications Of UNI-T UT216A 600A Digital Clamp Meter AC/DC Current:
| Specifications | Range | UT216A | UT216B | UT216C | UT216D |
| AC current (A) | 600A | ±(2.5%+5) | ±(2.5%+5) | ±(2.5%+5) | ±(2.5%+5) |
| AC current frequency response | 50/60Hz | 40~400Hz | 40~400Hz | 40~400Hz | |
| DC current (A) | 600A | ±(2.5%+5) | ±(2.5%+5) | ||
| AC voltage (V) | 750V | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) |
| AC voltage frequency response | 40~400Hz | 40~400Hz | 40~400Hz | 45~400Hz | |
| DC voltage (V) | 1000V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) |
| Resistance (Ω) | 60MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ±(4%+5) |
| Frequency (Hz) | 10Hz~1MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) | |
| Temperature | -40°C~1000°C | ±(2%+5) | ±(2.5%+3) | ||
| -40°F~1832°F | ±(2%+10) | ±(2.5%+6) | |||
| Features | |||||
| Display count | 6000 | 6000 | 6000 | 6000 | |
| Auto range | √ | √ | √ | √ | |
| Jaw opening | 30mm | 30mm | 30mm | 30mm | |
| True RMS | √ | √ | √ | √ | |
| Diode | Around 3.0V | √ | √ | √ | √ |
| V.F.C. | √ | √ | √ | ||
| NCV | √ | √ | √ | √ | |
| Data hold | √ | √ | √ | √ | |
| Relative mode | √ | √ | √ | √ | |
| MAX/MIN | √ | √ | √ | √ | |
| LCD backlight | √ | √ | √ | ||
| Inrush current | √ | √ | |||
| OLED display | √ | ||||
| Analog bar graph | 61 | 21 | |||
| Flashlight | √ | √ | √ | √ | |
| Auto power off | √ | √ | √ | √ | |
| Continuity buzzer | √ | √ | √ | √ | |
| Low battery indication | ≤3.6V | √ | √ | √ | √ |
| Input protection | √ | √ | √ | √ | |
| Input impedance for DCV | ≥10MΩ | √ | √ | √ | √ |
| General Characteristics | |||||
| Power | 1.5V battery (R03) x 3 | ||||
| Display | 38mm x 24mm | ||||
| Product color | Red and grey | ||||
| Product net weight | UT216A: 280g; UT216B/C/D: 231.7g | ||||
| Product size | 220mm x 75mm x 40mm | ||||
| Standard accessories | Batteries, test leads, point contact temperature probe (UT216C/UT216D) | ||||
| Standard individual packing | Gift box, carrying bag, English manual | ||||
| Standard quantity per carton | 40pcs | ||||
| Standard carton measurement | 485mm x 345mm x 385mm | ||||
| Standard carton gross weight | UT216A: 20.6kg; UT216B: 19.3kg; UT216C: 20.1kg; UT216D: 20.3kg | ||||
Package Include:
- 1xDigital Clamp Meter 600A UNI T UT216A
