STM32f4 STM32f407 Discovery Kit Arm Cortex-M4 Development Board In Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter


Rs.5500 Rs. 6875

Online Shopping website for STM32f407 Discovery Kit Arm Cortex-M4 Development Board.Here you get STM32f407 Discovery Kit Arm Cortex-M4 Development Board in reasonable price in karachi, lahore, islamabad, rawalpindi, peshawar, quetta, multan and all over Pakistan Online Shopping website for STM32f407 Discovery Kit Arm Cortex-M4 Development Board.Here you get STM32f407 Discovery Kit Arm Cortex-M4 Development Board in reasonable price in karachi, lahore, islamabad, rawalpindi, peshawar, quetta, multan and all over Pakistan The STM32F407 Discovery Kit for STM32F407 kit leverages the capabilities of the STM32F407 high-performance microcontrollers, to allow users to easily develop applications featuring audio. It includes an ST-LINK embedded debug tool, one ST-MEMS digital accelerometer, a digital microphone, one audio DAC with the integrated class D speaker driver, LEDs, push-buttons and a USB OTG micro-AB connector.


  1. STM32F407VGT6 microcontroller featuring 32-bit ARM® Cortex® -M4 with FPU core, 1-Mbyte Flash memory, 192-Kbyte RAM in an LQFP100 package
  2. On-board ST-LINK/V2 on STM32F4DISCOVERY (old reference) or ST-LINK/V2-A on STM32F407G-DISC1 (new order code)
  3. USB ST-LINK with re-enumeration capability and three different interfaces:
  4. Debug port
  5. Virtual Com port (with new order code only)
  6. Mass storage (with new order code only)
  7. Board power supply: through USB bus or from an external 5 V supply voltage
  8. External application power supply: 3 V and 5 V
  9. LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
  10. MP45DT02 ST-MEMS audio sensor omnidirectional digital microphone
  11. CS43L22 audio DAC with integrated class D speaker driver
  12. LD1 (red/green) for USB communication
  13. LD2 (red) for 3.3 V power on
  14. Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
  15. 2 USB OTG LEDs LD7 (green) VBUS and LD8 (red) over-current
  16. Two push-buttons (user and reset)
  17. USB OTG FS with micro-AB connector
  18. Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
  19. Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32068 to use legacy standard libraries.

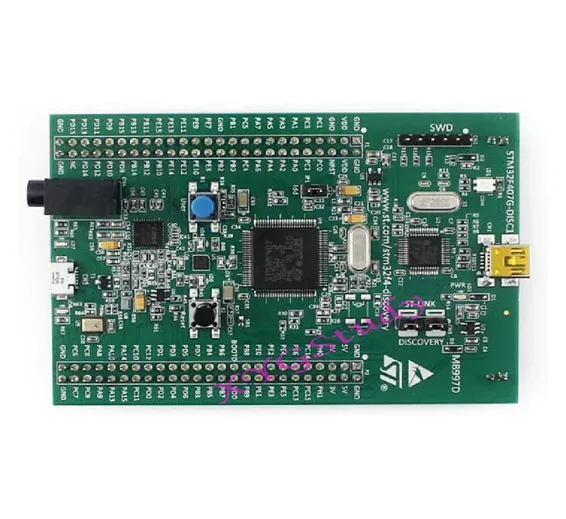

Soldered on the board is an STM32F407VG microcontroller packaged in a 100-pin LQFP (Low-profile Quad Flat Pack). This microcontroller contains an ARM Cortex-M4 core with FPU (Floating Point Unit).

Some of the features of the STM32F407VG microcontroller are:

  1. 1M Byte Flash memory
  2. 192k Bytes RAM
  3. On-chip RC oscillator
  4. Powered by a single supply of 1.8V to 3.6V
  5. Up to 168MHz operation
  6. I/O pins multiplexed with many internal peripherals
  8. Ethernet
  9. Static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories
  10. LCD parallel interface
  11. This microcontroller is part of the STM32F4 Hi-performance and DSP series of Cortex-M4s from ST.

Board Features ST-LINK

The ST-LINK is an ST Microelectronics USB JTAG tool for programming and debugging STM8 and STM32 microcontrollers. It is an external tool that is used to program and debug STM microcontrollers using JTAG or SWD (Serial Wire Debug).

An embedded ST-LINK is included on the STM32F4-Discovery evaluation board that can be used to program the onboard STM32F407VG microcontroller. The embedded ST-LINK can also be used to single-step through the source code and debug the target microcontroller.

By removing two jumper links on the board, the embedded ST-LINK can be used as a programmer/debugger to program/debug an ST microcontroller on another board via a cable from the SWD connector. The embedded ST-LINK is limited to programming STM32F microcontrollers via an SWD link only. JTAG is not supported by the embedded ST-LINK.

Peripherals and Headers: I/O Interface Devices

The board features four user programmable LEDs and a user programmable push-button switch. A second push-button is connected to the reset pin (NRST) of the microcontroller.


The STM32F407VG is also interfaced to an Audio DAC and MEMS microphone. A stereo audio jack is on board for connecting headphones or speakers to the audio output of the DAC.


The board has one USB OTG full speed port available on a USB micro-B connector.

Motion Sensor

A three-axis linear accelerometer is interfaced to the board.


All of the I/O pins of the STM32F407VG are available on pin headers. Two 25 by 2 (50 pin) headers are located on either side of the board along its length, one per side. The pin names are silk-screened next to the pin headers. The pin headers protrude from the top of the board allowing easy attachment of oscilloscope or logic analyzer test probes.


Although the STM32F407VG has two internal RC oscillators, an 8MHz crystal is used for the main oscillator. There is place on the board for a 32.768kHz crystal which is not fitted.

Solder Bridges:

The board has a number of solder-bridge connectors that can be soldered closed or de-soldered to open them in order to make or break connections.

Current Consumption

A jumper link on the board can be removed allowing an ammeter to be connected if current consumption of the microcontroller needs to be measured.


The STM32F4-Discovery evaluation board is an excellent board for learning and evaluating the STM32F4 range of Cortex-M4 microcontrollers from STMicroelectronics. With many onboard peripherals already interfaced to the microcontroller, it provides an opportunity to write some interesting code without the need to add extra external hardware. If the external hardware does need to be interfaced, it can be connected to the two 50 pin headers on the board.

Package Includes:

1 x STM32F407 Discovery Kit for STM32F407
